How to Generate Pro Word Clouds in Java with Quarkus and Java2D
Recreate the magic of Wordle and EdWordle using a modern Java stack, custom fonts, physics-driven layouts, and a REST-powered renderer.
I’ve always had a soft spot for word clouds.
Long before I worked with Java frameworks or built AI-infused applications, I was the person who obsessed over slide layouts, typography, and tiny kerning adjustments no one else noticed. I loved presentations that felt designed. Exactly the ones where the font choice, whitespace, and visual rhythm carried as much meaning as the text itself.
So when I discovered the original Wordle years ago, it clicked immediately.
Here was a tool that turned language into shape, frequency into form, and content into composition. I used word clouds everywhere: presentations, workshops, architecture reviews, team retros. Not as decoration, but as a way to visualize the story behind the text. And because I’ve always cared (maybe too much) about good type, the aesthetics of those early Wordle and EdWordle layouts fascinated me. They weren’t random. They had flow and balance. They looked… intentional.
And of course, the engineer in me had the predictable reaction:
How does this actually work, and could I build one myself?
Back then, Wordle was closed source, and EdWordle was a research prototype that you couldn’t just drop into a Java service. But the desire stuck. I wanted a renderer I could embed anywhere: slides, demos, microservices, creative tools, even automated reporting pipelines. A word cloud generator that respected font metrics, preserved visual consistency, and produced images I wouldn’t be embarrassed to show next to professionally designed material.
This article is finally that project.
A hands-on guide to building a Wordle/EdWordle-inspired renderer in pure Java, running inside Quarkus, streaming PNGs over REST, and exposing a small Qute UI so you can tweak parameters and watch the layout evolve.
If you’ve ever loved type, layout, or meaningful visuals, you’ll enjoy this one.
Let’s build the word cloud generator I always wanted to use.

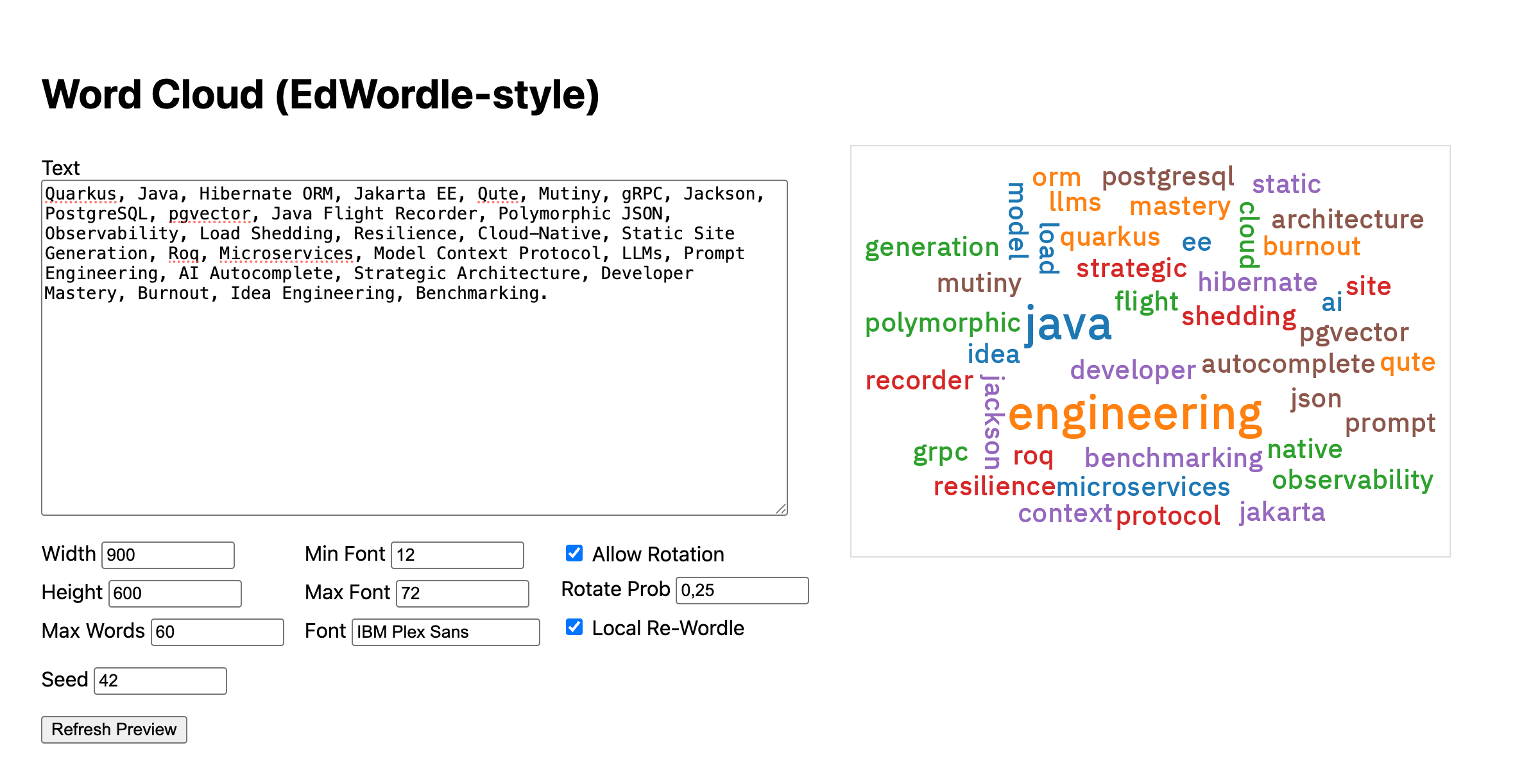

You’ll build a Quarkus app that:
exposes
/api/wordcloud.pngto stream a PNGserves a Qute page to configure parameters and preview the image
implements an EdWordle-inspired layout in plain Java2D (no Swing UI)
Prerequisites
Java 21+
Maven 3.9+
Quarkus CLI (optional)
IBMPlexSans.ttf (download)
Bootstrap & Dependencies
quarkus create app com.example.wordcloud:quarkus-wordcloud -x rest,rest-qute,awt
cd quarkus-wordcloudNo extra deps needed; we’ll use java.awt, java.awt.geom, and javax.imageio. It is not a massive amount of code we are looking at today, but as usual, you can find the full working example in my Github repository.
Core Implementation
We’ll adapt the EdWordle mechanics into a headless renderer:
frequency → font size
initial spiral placement around the center
physics compaction with neighbor and central forces
two-level bounding boxes for large words
optional local “re-Wordle” to fill boundary gaps
DTO and Params
CloudParams is a configuration class that holds default parameters for word cloud generation: dimensions (width/height), word count limits, rotation settings, font family and size range, and rendering options like boundary compaction and seed for reproducibility.
src/main/java/com/example/wordcloud/api/CloudParams.java
package com.example.wordcloud.api;
public class CloudParams {
public int width = 900;
public int height = 600;
public int maxWords = 60;
public boolean rotateSome = true; // ~30% vertical
public double rotateProb = 0.25; // 0..1
public String fontFamily = “IBM Plex Sans”;
public int minFont = 12;
public int maxFont = 72;
public boolean localRewordle = true; // boundary compaction
public long seed = 42L; // reproducibility
}EdWordle-inspired Layout
WordCloudRenderer renders word clouds as PNG images. It counts word frequencies, selects the top N words, sizes fonts by frequency, places words using a spiral algorithm with collision detection, applies a physics simulation to compact and arrange them, optionally performs boundary compaction, and renders the final image. Includes safeguards to keep large fonts within canvas bounds and supports word rotation.
src/main/java/com/example/wordcloud/core/WordCloudRenderer.java
package com.example.wordcloud.core;
import java.awt.*;
import java.awt.font.FontRenderContext;
import java.awt.font.TextLayout;
import java.awt.geom.*;
import java.awt.image.BufferedImage;
import java.io.InputStream;
import java.util.*;
import java.util.List;
import org.jboss.logging.Logger;
/**
* EdWordle-inspired Word Cloud Renderer for Quarkus.
*
* Large-font stability improvements:
* - Max font limited to fraction of canvas height
* - Global proportional downscale if needed
* - Canvas-fit checks on placement
* - Physics keeps bodies inside canvas
* - Slight bounds inflation for big fonts (ascent/descent safety)
*/
public class WordCloudRenderer {
private static final Logger LOG = Logger.getLogger(WordCloudRenderer.class);
// Upper bound as % of canvas height for the largest word
private static final double BIGGEST_WORD_HEIGHT_FRACTION = 0.25; // 25%
private static final double SAFETY_MARGIN = 5.0;
// Font cache: key = “family:size”, value = Font instance
private static final Map<String, Font> FONT_CACHE = new HashMap<>();
private static final Object FONT_CACHE_LOCK = new Object();
// Thread-safe font name loading
private static volatile String FONT_NAME;
private static final Object FONT_LOAD_LOCK = new Object();
public static String getFontName() {
if (FONT_NAME == null) {
synchronized (FONT_LOAD_LOCK) {
if (FONT_NAME == null) {
FONT_NAME = loadAndRegisterFont();
}
}
}
return FONT_NAME;
}
private static String loadAndRegisterFont() {
try (InputStream fontStream = WordCloudRenderer.class.getClassLoader()
.getResourceAsStream(”IBMPlexSans-Regular.ttf”)) {
if (fontStream != null) {
Font customFont = Font.createFont(Font.TRUETYPE_FONT, fontStream);
GraphicsEnvironment ge = GraphicsEnvironment.getLocalGraphicsEnvironment();
ge.registerFont(customFont);
LOG.debugf(”Successfully loaded and registered font: %s”, customFont.getFamily());
return customFont.getFamily();
} else {
LOG.warn(”Font resource IBMPlexSans-Regular.ttf not found, using fallback font Arial”);
}
} catch (Exception e) {
LOG.warnf(e, “Failed to load IBMPlexSans-Regular.ttf, using fallback font Arial”);
}
return “Arial”; // fallback
}
/**
* Normalizes font family name, using default font if null/empty/Arial.
*/
private static String normalizeFontFamily(String fontFamily) {
if (fontFamily == null || fontFamily.isEmpty() || “Arial”.equals(fontFamily)) {
return getFontName();
}
return fontFamily;
}
/**
* Gets or creates a Font instance, using cache to avoid repeated creation.
*/
private static Font getFont(String fontFamily, int size) {
String normalizedFamily = normalizeFontFamily(fontFamily);
String key = normalizedFamily + “:” + size;
Font cached = FONT_CACHE.get(key);
if (cached != null) {
return cached;
}
synchronized (FONT_CACHE_LOCK) {
// Double-check after acquiring lock
cached = FONT_CACHE.get(key);
if (cached != null) {
return cached;
}
Font font = new Font(normalizedFamily, Font.BOLD, size);
FONT_CACHE.put(key, font);
return font;
}
}
private static void validateConfig(CloudConfig cfg) {
if (cfg == null) {
throw new IllegalArgumentException(”CloudConfig cannot be null”);
}
if (cfg.width <= 0) {
throw new IllegalArgumentException(”Width must be positive, got: “ + cfg.width);
}
if (cfg.height <= 0) {
throw new IllegalArgumentException(”Height must be positive, got: “ + cfg.height);
}
if (cfg.maxWords <= 0) {
throw new IllegalArgumentException(”maxWords must be positive, got: “ + cfg.maxWords);
}
if (cfg.minFont <= 0) {
throw new IllegalArgumentException(”minFont must be positive, got: “ + cfg.minFont);
}
if (cfg.maxFont <= 0) {
throw new IllegalArgumentException(”maxFont must be positive, got: “ + cfg.maxFont);
}
if (cfg.minFont > cfg.maxFont) {
throw new IllegalArgumentException(
String.format(”minFont (%d) must be <= maxFont (%d)”, cfg.minFont, cfg.maxFont));
}
if (cfg.rotateProb < 0.0 || cfg.rotateProb > 1.0) {
throw new IllegalArgumentException(
“rotateProb must be between 0.0 and 1.0, got: “ + cfg.rotateProb);
}
// Validate reasonable maximums to prevent memory issues
if (cfg.width > 10000 || cfg.height > 10000) {
throw new IllegalArgumentException(
String.format(”Dimensions too large: %dx%d (max 10000x10000)”, cfg.width, cfg.height));
}
if (cfg.maxWords > 1000) {
throw new IllegalArgumentException(”maxWords too large: “ + cfg.maxWords + “ (max 1000)”);
}
}
public static BufferedImage renderPng(List<String> tokens, CloudConfig cfg) {
return renderPng(tokens, cfg, null);
}
public static BufferedImage renderPng(List<String> tokens, CloudConfig cfg, CancellationFlag cancellation) {
// Validate configuration
validateConfig(cfg);
if (cancellation != null && cancellation.isCancelled()) {
throw new IllegalStateException(”Rendering was cancelled”);
}
// 1) frequency
Map<String, Integer> freq = new HashMap<>();
for (String t : tokens) {
if (t == null)
continue;
String w = t.trim();
if (!w.isEmpty())
freq.put(w, freq.getOrDefault(w, 0) + 1);
}
// 2) select top N
List<Map.Entry<String, Integer>> sorted = new ArrayList<>(freq.entrySet());
sorted.sort((a, b) -> b.getValue().compareTo(a.getValue()));
int use = Math.min(cfg.maxWords, sorted.size());
int maxFreq = use == 0 ? 1 : sorted.get(0).getValue();
// 3) prepare image + measuring g2d
BufferedImage img = new BufferedImage(cfg.width, cfg.height, BufferedImage.TYPE_INT_ARGB);
Graphics2D g2d = img.createGraphics();
g2d.setRenderingHint(RenderingHints.KEY_ANTIALIASING, RenderingHints.VALUE_ANTIALIAS_ON);
g2d.setRenderingHint(RenderingHints.KEY_TEXT_ANTIALIASING, RenderingHints.VALUE_TEXT_ANTIALIAS_ON);
g2d.setPaint(Color.WHITE);
g2d.fillRect(0, 0, cfg.width, cfg.height);
Random rnd = new Random(cfg.seed);
// 3.1 enforce sane max font relative to canvas height
int canvasMaxFont = (int) Math.floor(cfg.height * BIGGEST_WORD_HEIGHT_FRACTION);
int effectiveMaxFont = Math.min(cfg.maxFont, canvasMaxFont);
// 4) words as bodies (create with preliminary font sizes)
List<Body> bodies = new ArrayList<>();
for (int i = 0; i < use; i++) {
var e = sorted.get(i);
double f = cfg.minFont + (e.getValue() / (double) maxFreq) * (effectiveMaxFont - cfg.minFont);
// last-resort cap in case cfg.minFont > effectiveMaxFont
f = Math.max(Math.min(f, effectiveMaxFont), Math.min(cfg.minFont, effectiveMaxFont));
double rot = (cfg.rotateSome && rnd.nextDouble() < cfg.rotateProb) ? Math.PI / 2d : 0d;
Color col = palette[i % palette.length];
bodies.add(new Body(e.getKey(), e.getValue(), f, rot, col, cfg.fontFamily));
}
// 4.1 proportional downscale if biggest font still too tall (extra safety when
// fonts differ)
rescaleFontsToFit(bodies, cfg, g2d);
// 5) initial spiral placement (Wordle-style) with canvas-fit check
Point2D center = new Point2D.Double(cfg.width / 2.0, cfg.height / 2.0);
for (Body b : bodies) {
if (cancellation != null && cancellation.isCancelled()) {
throw new IllegalStateException(”Rendering was cancelled during spiral placement”);
}
b.updateBounds(g2d);
boolean placed = false;
double angle = 0, radius = 0;
// prevent infinite search if a word is still too big
double maxRadius = Math.max(cfg.width, cfg.height) * 1.5;
while (!placed && radius < maxRadius) {
double x = center.getX() + radius * Math.cos(angle);
double y = center.getY() + radius * Math.sin(angle);
b.position = new Point2D.Double(x, y);
b.updateBounds(g2d);
if (!collides(b, bodies) && fitsInCanvas(b, cfg)) {
placed = true;
}
angle += 0.30;
if (angle > 2 * Math.PI) {
angle = 0;
radius += 5;
}
}
// If we failed to place (super rare with caps), pin to center safely
if (!placed) {
b.position = center;
b.updateBounds(g2d);
}
}
// 6) physics compaction (EdWordle-style), with in-bounds clamping
Physics.simulate(bodies, cfg, center, cancellation);
// 7) optional local boundary re-layout to close gaps
if (cfg.localRewordle)
LocalRewordle.compactBoundary(bodies, cfg, center, g2d);
// 8) final recenter
recenter(bodies, cfg, g2d);
// 9) paint words
g2d.setComposite(AlphaComposite.SrcOver);
for (Body b : bodies)
b.render(g2d);
g2d.dispose();
return img;
}
// ==== helpers ====
private static boolean collides(Body b, List<Body> bodies) {
for (Body o : bodies) {
if (o == b || o.wordBox == null || b.wordBox == null)
continue;
if (!b.wordBox.intersects(o.wordBox))
continue;
if (b.twoLevel && o.twoLevel && b.letterBoxes != null && o.letterBoxes != null) {
for (Rectangle2D r1 : b.letterBoxes)
for (Rectangle2D r2 : o.letterBoxes)
if (r1.intersects(r2))
return true;
continue;
}
return true;
}
return false;
}
private static boolean fitsInCanvas(Body b, CloudConfig cfg) {
if (b.wordBox == null)
return false;
return b.wordBox.getMinX() >= SAFETY_MARGIN &&
b.wordBox.getMinY() >= SAFETY_MARGIN &&
b.wordBox.getMaxX() <= cfg.width - SAFETY_MARGIN &&
b.wordBox.getMaxY() <= cfg.height - SAFETY_MARGIN;
}
private static void recenter(List<Body> bodies, CloudConfig cfg, Graphics2D g) {
if (bodies.isEmpty())
return;
double minX = Double.MAX_VALUE, minY = Double.MAX_VALUE;
double maxX = -Double.MAX_VALUE, maxY = -Double.MAX_VALUE;
for (Body b : bodies) {
Rectangle2D r = b.wordBox;
minX = Math.min(minX, r.getMinX());
minY = Math.min(minY, r.getMinY());
maxX = Math.max(maxX, r.getMaxX());
maxY = Math.max(maxY, r.getMaxY());
}
double dx = (cfg.width - (maxX - minX)) / 2 - minX;
double dy = (cfg.height - (maxY - minY)) / 2 - minY;
for (Body b : bodies) {
b.position = new Point2D.Double(b.position.getX() + dx, b.position.getY() + dy);
b.updateBounds(g);
}
}
private static void rescaleFontsToFit(List<Body> bodies, CloudConfig cfg, Graphics2D g) {
if (bodies.isEmpty())
return;
// Measure a temporary max height from text layout
double maxTextHeight = 0.0;
for (Body b : bodies) {
b.updateBounds(g);
if (b.wordBox != null) {
maxTextHeight = Math.max(maxTextHeight, b.wordBox.getHeight());
}
}
double targetMaxHeight = cfg.height * BIGGEST_WORD_HEIGHT_FRACTION;
if (maxTextHeight > targetMaxHeight) {
double scale = targetMaxHeight / maxTextHeight;
for (Body b : bodies) {
b.fontSize = Math.max(cfg.minFont, b.fontSize * scale);
// mass ~ size^2 keeps physics stable after scale
b.mass = b.fontSize * b.fontSize;
b.updateBounds(g);
}
}
}
// ==== config ====
public static class CloudConfig {
public int width, height, maxWords, minFont, maxFont;
public boolean rotateSome, localRewordle;
public double rotateProb;
public String fontFamily;
public long seed;
}
// ==== body (word) ====
static class Body {
final String text;
final int frequency;
double fontSize; // mutable to allow proportional rescaling
final double rotation;
final Color color;
final String fontFamily;
Point2D position = new Point2D.Double(0, 0);
Rectangle2D wordBox;
List<Rectangle2D> letterBoxes;
boolean twoLevel;
double mass = 1;
Vec2 v = new Vec2(0, 0);
Body(String text, int freq, double fontSize, double rotation, Color color, String fontFamily) {
this.text = text;
this.frequency = freq;
this.fontSize = fontSize;
this.rotation = rotation;
this.color = color;
this.fontFamily = fontFamily;
this.mass = fontSize * fontSize;
this.twoLevel = fontSize >= 36; // ~0.5 of 72px; reasonable for big words
}
void updateBounds(Graphics2D g) {
Font f = getFont(fontFamily, (int) Math.round(fontSize));
FontRenderContext frc = g.getFontRenderContext();
TextLayout tl = new TextLayout(text, f, frc);
Rectangle2D b = tl.getBounds();
// Slightly inflate for ascent/descent safety on very large fonts
double inflate = Math.max(0, f.getSize2D() * 0.20);
double w = b.getWidth() + inflate * 0.4;
double h = b.getHeight() + inflate;
if (rotation != 0) {
double c = Math.abs(Math.cos(rotation)), s = Math.abs(Math.sin(rotation));
double rw = w * c + h * s;
double rh = w * s + h * c;
w = rw;
h = rh;
}
wordBox = new Rectangle2D.Double(position.getX() - w / 2, position.getY() - h / 2, w, h);
letterBoxes = null;
if (twoLevel) {
letterBoxes = new ArrayList<>();
FontMetrics fm = g.getFontMetrics(f);
double x = position.getX() - w / 2;
double lh = h;
for (char ch : text.toCharArray()) {
double cw = fm.charWidth(ch) + inflate * 0.05;
letterBoxes.add(new Rectangle2D.Double(x, position.getY() - lh / 2, cw, lh));
x += cw;
}
}
}
void render(Graphics2D g) {
Font f = getFont(fontFamily, (int) Math.round(fontSize));
g.setFont(f);
g.setColor(color);
AffineTransform at = g.getTransform();
g.rotate(rotation, position.getX(), position.getY());
FontMetrics fm = g.getFontMetrics(f);
float x = (float) (position.getX() - fm.stringWidth(text) / 2.0);
float y = (float) (position.getY() + fm.getAscent() / 2.0 - fm.getDescent());
g.drawString(text, x, y);
g.setTransform(at);
}
}
// ==== physics (neighbors + central force, damping) ====
static class Physics {
static void simulate(List<Body> bodies, CloudConfig cfg, Point2D center, CancellationFlag cancellation) {
final int maxIt = 80;
final double alpha = 0.1; // central pull weight
final double beta = 1.0; // attenuation numerator
final double lambda = 0.8;// velocity damping
final double convergenceThreshold = 0.5; // early termination threshold
final int convergenceCheckInterval = 5; // check every N iterations
for (int t = 0; t < maxIt; t++) {
if (cancellation != null && cancellation.isCancelled()) {
throw new IllegalStateException(”Rendering was cancelled during physics simulation”);
}
double maxVelocity = 0.0;
for (Body b : bodies) {
Vec2 f = neighborForce(b, bodies).add(centralForce(b, center).scale(alpha));
double g = beta / (t + 1.0);
b.v = b.v.add(f.scale(g / b.mass));
b.v = b.v.scale(lambda);
maxVelocity = Math.max(maxVelocity, b.v.mag());
}
for (Body b : bodies) {
if (b.v.mag() > 0.1) {
b.position = new Point2D.Double(b.position.getX() + b.v.x, b.position.getY() + b.v.y);
}
}
// keep bodies inside canvas after each iteration
clampInsideCanvas(bodies, cfg);
// refresh bounds for next iteration
BufferedImage m = new BufferedImage(1, 1, BufferedImage.TYPE_INT_ARGB);
Graphics2D gm = m.createGraphics();
gm.setRenderingHint(RenderingHints.KEY_ANTIALIASING, RenderingHints.VALUE_ANTIALIAS_ON);
for (Body b : bodies)
b.updateBounds(gm);
gm.dispose();
// simple separation if overlapping
boolean hasOverlaps = false;
for (int i = 0; i < bodies.size(); i++) {
Body a = bodies.get(i);
for (int j = i + 1; j < bodies.size(); j++) {
Body c = bodies.get(j);
if (a.wordBox != null && c.wordBox != null && a.wordBox.intersects(c.wordBox)) {
hasOverlaps = true;
double dx = c.position.getX() - a.position.getX();
double dy = c.position.getY() - a.position.getY();
double d = Math.hypot(dx, dy);
if (d > 0) {
Vec2 sep = new Vec2(dx / d, dy / d).scale(5.0);
a.position = new Point2D.Double(a.position.getX() - sep.x, a.position.getY() - sep.y);
c.position = new Point2D.Double(c.position.getX() + sep.x, c.position.getY() + sep.y);
}
}
}
}
// Early termination: check convergence periodically, but only if no overlaps
// Also require minimum iterations to ensure proper separation
if (t >= 20 && t > 0 && t % convergenceCheckInterval == 0 && maxVelocity < convergenceThreshold && !hasOverlaps) {
if (LOG.isDebugEnabled()) {
LOG.debug(String.format(”Physics simulation converged early at iteration %d (max velocity: %.3f)”, t, maxVelocity));
}
break;
}
}
}
static void clampInsideCanvas(List<Body> bodies, CloudConfig cfg) {
for (Body b : bodies) {
if (b.wordBox == null)
continue;
double halfW = b.wordBox.getWidth() / 2.0;
double halfH = b.wordBox.getHeight() / 2.0;
double minX = SAFETY_MARGIN + halfW;
double maxX = cfg.width - SAFETY_MARGIN - halfW;
double minY = SAFETY_MARGIN + halfH;
double maxY = cfg.height - SAFETY_MARGIN - halfH;
double nx = Math.max(minX, Math.min(maxX, b.position.getX()));
double ny = Math.max(minY, Math.min(maxY, b.position.getY()));
if (nx != b.position.getX() || ny != b.position.getY()) {
b.position = new Point2D.Double(nx, ny);
}
}
}
static Vec2 neighborForce(Body b, List<Body> all) {
Vec2 total = new Vec2(0, 0);
for (Body n : all) {
if (n == b)
continue;
double dx = n.position.getX() - b.position.getX();
double dy = n.position.getY() - b.position.getY();
double dist2 = dx * dx + dy * dy + 1.0;
double mag = (b.mass * n.mass) / dist2;
Vec2 dir = new Vec2(dx, dy).norm();
total = total.add(dir.scale(mag * 0.001));
}
return total;
}
static Vec2 centralForce(Body b, Point2D center) {
double dx = center.getX() - b.position.getX();
double dy = center.getY() - b.position.getY();
double dist2 = dx * dx + dy * dy;
return new Vec2(dx, dy).norm().scale(b.mass * dist2 * 0.00001);
}
}
static class LocalRewordle {
static void compactBoundary(List<Body> bodies, CloudConfig cfg, Point2D center, Graphics2D g) {
double bw = bboxWidth(bodies), bh = bboxHeight(bodies);
double radius = 0.8 * Math.min(bw, bh) / 2.0;
List<Body> boundary = new ArrayList<>();
for (Body b : bodies) {
double dx = b.position.getX() - center.getX();
double dy = b.position.getY() - center.getY();
if (Math.hypot(dx, dy) > radius)
boundary.add(b);
}
boundary.sort(Comparator.comparingDouble(o -> -o.fontSize));
for (Body b : boundary) {
Point2D start = midpoint(b.position, center);
int k = 20;
double angle = 0, step = 0.25, rad = 0;
Point2D best = null;
int bestScore = -1;
for (int i = 0; i < k; i++) {
double x = start.getX() + rad * Math.cos(angle);
double y = start.getY() + rad * Math.sin(angle);
Point2D p = new Point2D.Double(x, y);
Point2D old = b.position;
b.position = p;
b.updateBounds(g);
if (!collides(b, bodies)) {
int score = neighborCount(b, bodies);
if (score > bestScore) {
bestScore = score;
best = p;
}
}
b.position = old;
b.updateBounds(g);
angle += step;
if (angle > 2 * Math.PI) {
angle = 0;
rad += 6;
}
}
if (best != null) {
b.position = best;
b.updateBounds(g);
}
}
}
static int neighborCount(Body b, List<Body> all) {
int n = 0;
for (Body o : all) {
if (o == b)
continue;
if (b.wordBox.intersects(o.wordBox))
n++;
}
return n;
}
static double bboxWidth(List<Body> bodies) {
double minX = Double.MAX_VALUE, maxX = -1;
for (Body b : bodies) {
Rectangle2D r = b.wordBox;
minX = Math.min(minX, r.getMinX());
maxX = Math.max(maxX, r.getMaxX());
}
return maxX - minX;
}
static double bboxHeight(List<Body> bodies) {
double minY = Double.MAX_VALUE, maxY = -1;
for (Body b : bodies) {
Rectangle2D r = b.wordBox;
minY = Math.min(minY, r.getMinY());
maxY = Math.max(maxY, r.getMaxY());
}
return maxY - minY;
}
static Point2D midpoint(Point2D a, Point2D b) {
return new Point2D.Double((a.getX() + b.getX()) / 2.0, (a.getY() + b.getY()) / 2.0);
}
}
// ==== tiny vec ====
static class Vec2 {
final double x, y;
Vec2(double x, double y) {
this.x = x;
this.y = y;
}
Vec2 add(Vec2 o) {
return new Vec2(x + o.x, y + o.y);
}
Vec2 scale(double f) {
return new Vec2(x * f, y * f);
}
double mag() {
return Math.hypot(x, y);
}
Vec2 norm() {
double m = mag();
return m > 0 ? new Vec2(x / m, y / m) : new Vec2(0, 0);
}
}
// ==== palette ====
static final Color[] palette = {
new Color(31, 119, 180), new Color(255, 127, 14), new Color(44, 160, 44),
new Color(214, 39, 40), new Color(148, 103, 189), new Color(140, 86, 75)
};
// ==== cancellation support ====
/**
* Simple cancellation flag interface for long-running render operations.
* Implementations should be thread-safe.
*/
public interface CancellationFlag {
/**
* @return true if the operation should be cancelled
*/
boolean isCancelled();
}
/**
* Simple thread-safe cancellation flag implementation.
*/
public static class SimpleCancellationFlag implements CancellationFlag {
private volatile boolean cancelled = false;
public void cancel() {
this.cancelled = true;
}
@Override
public boolean isCancelled() {
return cancelled;
}
}
}Service Facade
WordCloudService is a service facade that tokenizes input text (normalizes, removes punctuation, splits into words), maps CloudParams to CloudConfig, and delegates rendering to WordCloudRenderer. Returns a BufferedImage of the word cloud.
src/main/java/com/example/wordcloud/app/WordCloudService.java
package com.example.wordcloud.app;
import java.awt.image.BufferedImage;
import java.util.Arrays;
import java.util.List;
import com.example.wordcloud.api.CloudParams;
import com.example.wordcloud.core.WordCloudRenderer;
import com.example.wordcloud.core.WordCloudRenderer.CloudConfig;
import jakarta.enterprise.context.ApplicationScoped;
@ApplicationScoped
public class WordCloudService {
public BufferedImage render(String text, CloudParams p) {
List<String> tokens = tokenize(text);
CloudConfig cfg = toCfg(p);
return WordCloudRenderer.renderPng(tokens, cfg);
}
private List<String> tokenize(String text) {
if (text == null || text.isBlank())
return List.of(”quarkus”, “java”, “word”, “cloud”);
String norm = text.toLowerCase().replaceAll(”[^\\p{L}\\p{Nd}\\s]+”, “ “);
return Arrays.asList(norm.trim().split(”\\s+”));
}
private CloudConfig toCfg(CloudParams p) {
CloudConfig c = new CloudConfig();
c.width = p.width;
c.height = p.height;
c.maxWords = p.maxWords;
c.minFont = p.minFont;
c.maxFont = p.maxFont;
c.rotateSome = p.rotateSome;
c.rotateProb = p.rotateProb;
c.localRewordle = p.localRewordle;
c.fontFamily = p.fontFamily;
c.seed = p.seed;
return c;
}
}Streaming REST Endpoint (PNG)
WordCloudResource is a REST endpoint at /api/wordcloud.png that generates word clouds. It accepts query parameters for configuration (dimensions, font sizes, rotation, etc.) and a text parameter, uses WordCloudService to render the image, and returns it as a PNG response. The inner QueryParams class maps HTTP query parameters to CloudParams.
src/main/java/com/example/wordcloud/api/WordCloudResource.java
package com.example.wordcloud.api;
import java.awt.image.BufferedImage;
import java.io.OutputStream;
import javax.imageio.ImageIO;
import com.example.wordcloud.app.WordCloudService;
import jakarta.inject.Inject;
import jakarta.ws.rs.BeanParam;
import jakarta.ws.rs.DefaultValue;
import jakarta.ws.rs.GET;
import jakarta.ws.rs.Path;
import jakarta.ws.rs.Produces;
import jakarta.ws.rs.QueryParam;
import jakarta.ws.rs.core.Response;
import jakarta.ws.rs.core.StreamingOutput;
@Path(”/api/wordcloud.png”)
public class WordCloudResource {
@Inject
WordCloudService service;
@GET
@Produces(”image/png”)
public Response renderPng(@QueryParam(”text”) String text,
@BeanParam QueryParams qp) {
CloudParams p = qp.toParams();
BufferedImage img = service.render(text, p);
StreamingOutput stream = (OutputStream out) -> ImageIO.write(img, “PNG”, out);
return Response.ok(stream).build(); // chunked streaming
}
public static class QueryParams {
@QueryParam(”w”)
@DefaultValue(”900”)
int w;
@QueryParam(”h”)
@DefaultValue(”600”)
int h;
@QueryParam(”max”)
@DefaultValue(”60”)
int max;
@QueryParam(”minFont”)
@DefaultValue(”12”)
int minFont;
@QueryParam(”maxFont”)
@DefaultValue(”72”)
int maxFont;
@QueryParam(”rotate”)
@DefaultValue(”true”)
boolean rotate;
@QueryParam(”rotateProb”)
@DefaultValue(”0.25”)
double rotateProb;
@QueryParam(”font”)
@DefaultValue(”IBM Plex Sans”)
String font;
@QueryParam(”rewordle”)
@DefaultValue(”true”)
boolean rewordle;
@QueryParam(”seed”)
@DefaultValue(”42”)
long seed;
CloudParams toParams() {
CloudParams p = new CloudParams();
p.width = w;
p.height = h;
p.maxWords = max;
p.minFont = minFont;
p.maxFont = maxFont;
p.rotateSome = rotate;
p.rotateProb = rotateProb;
p.fontFamily = font;
p.localRewordle = rewordle;
p.seed = seed;
return p;
}
}
}Qute Page for Parameters + Live Preview
HomeResource is a REST endpoint at / that serves the home page. It injects a Qute template (wordcloud_index) and returns its instance to render the HTML interface for the word cloud application.
src/main/java/com/example/wordcloud/web/HomeResource.java
package com.example.wordcloud.web;
import io.quarkus.qute.Template;
import io.quarkus.qute.TemplateInstance;
import jakarta.inject.Inject;
import jakarta.ws.rs.GET;
import jakarta.ws.rs.Path;
@Path(”/”)
public class HomeResource {
@Inject
Template wordcloud_index;
@GET
public TemplateInstance index() {
return wordcloud_index.instance();
}
}src/main/resources/templates/wordcloud_index.qute.html
<!DOCTYPE html>
<html lang=”en”>
<head>
<meta charset=”utf-8”/>
<meta name=”viewport” content=”width=device-width, initial-scale=1”/>
<title>Quarkus Word Cloud</title>
<style>
<! -- ommitted -->
</style>
</head>
<body>
<h1>Word Cloud (EdWordle-style) </h1>
<div class=”row”>
<form id=”form”>
<label>Text</label>
<textarea name=”text” placeholder=”Paste text here”></textarea>
<div class=”row” style=”gap:1rem; margin-top:.5rem;”>
<div>
<label>Width <input type=”number” name=”w” value=”900” /></label>
<label>Height <input type=”number” name=”h” value=”600” /></label>
<label>Max Words <input type=”number” name=”max” value=”60” /></label>
</div>
<div>
<label>Min Font <input type=”number” name=”minFont” value=”12” /></label>
<label>Max Font <input type=”number” name=”maxFont” value=”72” /></label>
<label>Font <input type=”text” name=”font” value=”IBM Plex Sans” /></label>
</div>
<div>
<label><input type=”checkbox” name=”rotate” checked /> Allow Rotation</label>
<label>Rotate Prob <input type=”number” step=”0.05” name=”rotateProb” value=”0.25” /></label>
<label><input type=”checkbox” name=”rewordle” checked /> Local Re-Wordle</label>
</div>
</div>
<div style=”margin-top:1rem;”>
<label>Seed <input type=”number” name=”seed” value=”42” /></label>
</div>
<div style=”margin-top:1rem;”>
<button type=”button” id=”refresh”>Refresh Preview</button>
</div>
</form>
<div class=”preview”>
<img id=”img” alt=”Preview” width=”450” />
</div>
</div>
<script>
const img = document.getElementById(’img’);
const form = document.getElementById(’form’);
function buildUrl() {
const fd = new FormData(form);
const params = new URLSearchParams();
for (const [k, v] of fd.entries()) {
if (k === ‘text’) continue;
if (k === ‘rotate’ || k === ‘rewordle’) {
params.set(k, ‘on’ === v ? ‘true’ : v); // checkbox normalization
} else {
params.set(k, v);
}
}
const text = encodeURIComponent(fd.get(’text’) || ‘’);
return ‘/api/wordcloud.png?’ + params.toString() + ‘&text=’ + text + ‘&_=’ + Date.now();
}
function refresh() { img.src = buildUrl(); }
document.getElementById(’refresh’).addEventListener(’click’, refresh);
refresh(); // initial
</script>
</body>
</html>Run & Verify
quarkus devBrowse to : http://localhost:8080
Direct PNG streaming with cURL:
curl -G "http://localhost:8080/api/wordcloud.png" \
--data-urlencode "text=Quarkus Quarkus Java Java Cloud Word Layout Physics" \
--data-urlencode "w=1200" --data-urlencode "h=700" --output cloud.pngThe endpoint responds with Content-Type: image/png and streams a compact cloud. Refreshing the Qute page changes the layout deterministically with the same seed.
Production Notes
Font availability matters in containers. Install system fonts or ship a bundled font (e.g., include a TTF in resources (Like I did with the IBMPlex) and load with
Font.createFont).Performance: keep
maxWordsaround 50–100 per request. The physics loop is O(n²). For higher loads, pre-tokenize on the client or cache by(hash(text), params).Security: sanitize input. We already strip punctuation and split on whitespace; extend stop-word removal if needed.
Observability: add a timer around render and expose metrics to Prometheus.
Caching: strong candidate. Use an in-memory cache keyed by params + text hash to avoid re-layout on identical requests.
Why this layout works
We follow EdWordle’s core ideas:
represent big words with a two-level box so letters don’t “tunnel” and clouds stay compact
apply neighbor and central forces with damping for stable compaction
run a local boundary “re-Wordle” to fill gaps without wrecking neighborhoods
These choices improve compactness while keeping related words close, leading to more readable and “storytelling” clouds.
Variations
Shapes: add an outer mask and reject placements outside it.
Theming: switch palettes by query param.
Reactive: return
Multi<byte[]>if you want to progressively write the PNG; most clients won’t benefit, so chunkedStreamingOutputis fine.
Build small. Ship fast. Render clouds on demand.
