Beyond @RolesAllowed: Fine-Grained RBAC in Quarkus

Secure every document with per-object permissions, JWT identity, and a lean 100-line service.

Most business systems eventually need more than a single admin or user role. Auditors want to know exactly who could read a tax document last quarter, tenants insist that one customer never sees another customer’s data, and regulators expect least-privilege enforcement to be demonstrable. Static annotations such as @RolesAllowed("admin") solve none of this because they bind users to roles, not users to objects.

A rights matrix, user × resource × permission, answers the need, and Quarkus makes the implementation surprisingly compact. You are about to build a document service where every document carries its own ACL, enforced by Quarkus’ permission checker API and protected by JWTs. You can learn more about Quarkus’ security in this guide.

Project setup

Create a new project and pull in REST, persistence, and security:

mvn io.quarkus.platform:quarkus-maven-plugin:create \
  -DprojectGroupId=com.example \
  -DprojectArtifactId=granular-rbac-tutorial \
  -Dextensions="rest-jackson,hibernate-orm-panache,jdbc-postgresql,smallrye-jwt, hibernate-validator"
cd granular-rbac-tutorial

Add BCrypt for password hashing to pom.xml:

<dependency>
  <groupId>org.mindrot</groupId>
  <artifactId>jbcrypt</artifactId>
  <version>0.4</version>
</dependency>

If you want to get started from the full example, check out my Github repository.

Configuration

Replace src/main/resources/application.properties:

# --- datasource ---
quarkus.datasource.db-kind=postgresql

# generate schema on every dev run
quarkus.hibernate-orm.database.generation=drop-and-create
quarkus.hibernate-orm.log.sql=true

# --- JWT ---
mp.jwt.verify.issuer=https://example.com/issuer
mp.jwt.verify.publickey.location=META-INF/resources/publicKey.pem
smallrye.jwt.sign.key.location=keys/privateKey.pem
smallrye.jwt.new-token.claims-to-string=upn,groups

Generate the key pair once:

mkdir keys
openssl genrsa -out keys/privateKey.pem 2048
openssl rsa -in keys/privateKey.pem -pubout -out keys/publicKey.pem
mv keys/publicKey.pem src/main/resources/META-INF/resources/

Keep privateKey.pem outside version control; Quarkus will read it from keys/ during dev.

Domain model

A robust security model starts in the database. Before you write a single permission check, you need a schema that makes intent explicit; who owns a document, which actions exist, and how a single lookup can tell Quarkus whether a user may proceed. The forthcoming entities therefore capture three essential facts: users, documents, and the rights that connect them.

DocumentRight.java

package com.example.entity;

public enum DocumentRight {
    READ, WRITE, DELETE, SHARE
}

User.java

package com.example.entity;

import org.mindrot.jbcrypt.BCrypt;

import io.quarkus.hibernate.orm.panache.PanacheEntity;
import jakarta.persistence.Column;
import jakarta.persistence.Entity;
import jakarta.persistence.Table;

@Entity
@Table(name = "app_users") // “user” is reserved in Postgres
public class User extends PanacheEntity {

    @Column(unique = true, nullable = false)
    public String username;

    @Column(nullable = false)
    public String password;

    public static User findByUsername(String username) {
        return find("username", username).firstResult();
    }

    public static User add(String username, String rawPassword) {
        User u = new User();
        u.username = username;
        u.password = BCrypt.hashpw(rawPassword, BCrypt.gensalt());
        u.persist();
        return u;
    }
}

Document.java

package com.example.entity;

import java.time.LocalDateTime;

import io.quarkus.hibernate.orm.panache.PanacheEntity;
import jakarta.persistence.Column;
import jakarta.persistence.Entity;
import jakarta.persistence.FetchType;
import jakarta.persistence.JoinColumn;
import jakarta.persistence.ManyToOne;
import jakarta.persistence.PrePersist;
import jakarta.persistence.PreUpdate;
import jakarta.persistence.Table;

@Entity
@Table(name = "documents")
public class Document extends PanacheEntity {

    @Column(nullable = false)
    public String title;

    @Column(columnDefinition = "text")
    public String content;

    @ManyToOne(fetch = FetchType.LAZY)
    @JoinColumn(name = "owner_id", nullable = false)
    public User owner;

    @Column(name = "created_at", nullable = false, updatable = false)
    public LocalDateTime createdAt;

    @Column(name = "updated_at")
    public LocalDateTime updatedAt;

    @PrePersist
    void initTimestamps() {
        createdAt = LocalDateTime.now();
    }

    @PreUpdate
    void touch() {
        updatedAt = LocalDateTime.now();
    }
}

UserDocumentRight.java

package com.example.entity;

import io.quarkus.hibernate.orm.panache.PanacheEntity;
import jakarta.persistence.Column;
import jakarta.persistence.Entity;
import jakarta.persistence.EnumType;
import jakarta.persistence.Enumerated;
import jakarta.persistence.FetchType;
import jakarta.persistence.JoinColumn;
import jakarta.persistence.ManyToOne;
import jakarta.persistence.Table;
import jakarta.persistence.UniqueConstraint;

@Entity
@Table(name = "user_document_rights", uniqueConstraints = @UniqueConstraint(columnNames = { "user_id", "document_id",
        "right_type" }))
public class UserDocumentRight extends PanacheEntity {

    @ManyToOne(fetch = FetchType.LAZY)
    @JoinColumn(name = "user_id", nullable = false)
    public User user;

    @ManyToOne(fetch = FetchType.LAZY)
    @JoinColumn(name = "document_id", nullable = false)
    public Document document;

    @Enumerated(EnumType.STRING)
    @Column(name = "right_type", nullable = false)
    public DocumentRight right;

    public static boolean hasRight(Long userId, Long docId, DocumentRight r) {
        return count("user.id = ?1 and document.id = ?2 and right = ?3",
                userId, docId, r) > 0;
    }
}

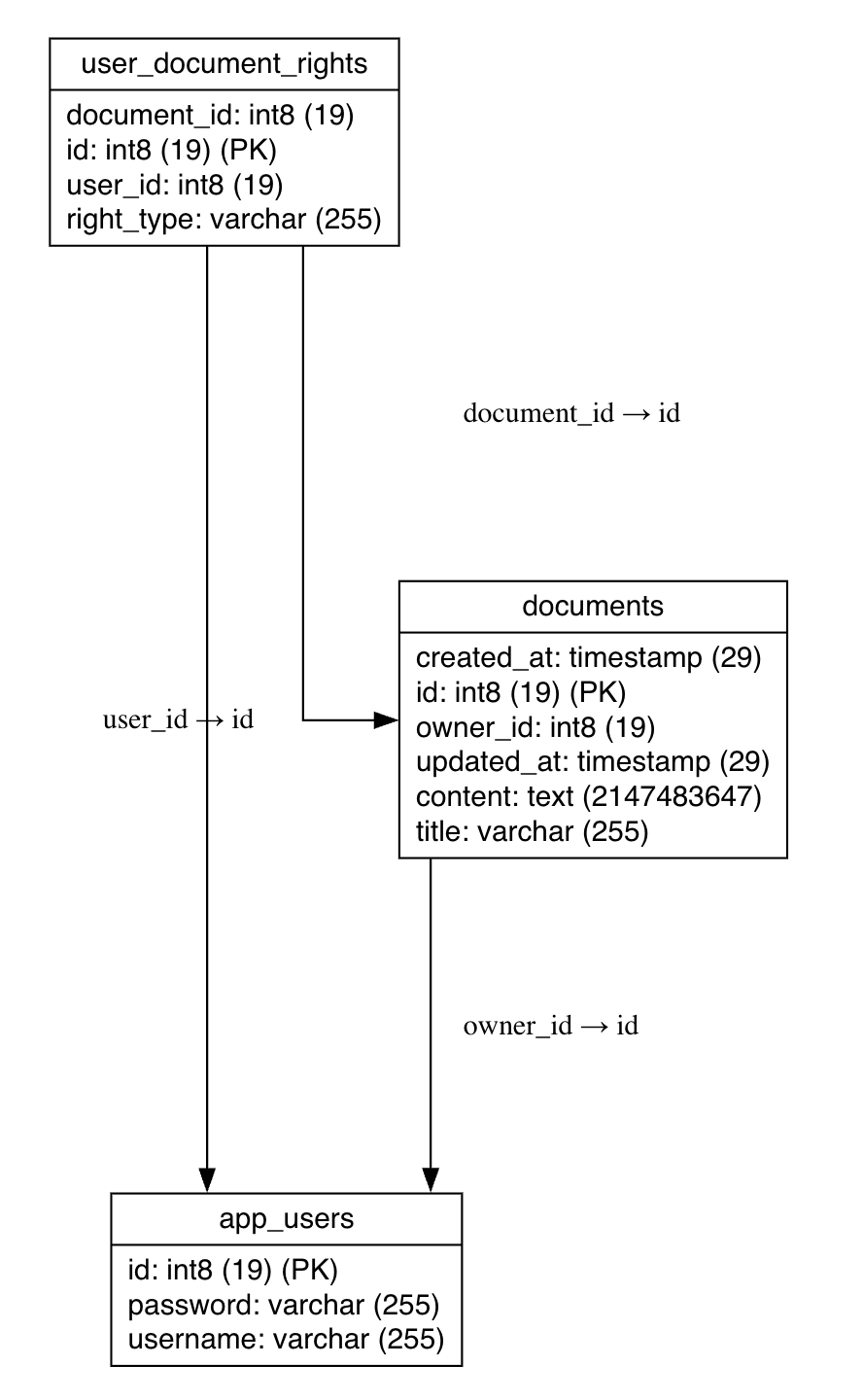

The complete Domain model looks like this:

Authentication and JWT issuance

Every permission check ultimately relies on a trustworthy identity. If you cannot prove who the caller is, a perfectly modelled rights matrix is worthless. Quarkus solves identification with JSON Web Tokens: a signed, tamper-evident bundle of claims that travels with every request. In this section you will expose two minimal endpoints: register and login. We hash user passwords securely, mint a JWT on successful login, and include a custom user_id claim your permission checker can consume without additional database round-trips.

DTO

package com.example.dto;

public class AuthRequest {
    public String username;
    public String password;
}

AuthResource.java

package com.example.controller;

import java.time.Duration;

import org.eclipse.microprofile.jwt.Claims;
import org.mindrot.jbcrypt.BCrypt;

import com.example.dto.AuthRequest;
import com.example.entity.User;

import io.smallrye.jwt.build.Jwt;
import jakarta.enterprise.context.ApplicationScoped;
import jakarta.transaction.Transactional;
import jakarta.validation.Valid;
import jakarta.ws.rs.Consumes;
import jakarta.ws.rs.POST;
import jakarta.ws.rs.Path;
import jakarta.ws.rs.Produces;
import jakarta.ws.rs.core.MediaType;
import jakarta.ws.rs.core.Response;

@Path("/auth")
@ApplicationScoped
@Consumes(MediaType.APPLICATION_JSON)
@Produces(MediaType.APPLICATION_JSON)
public class AuthResource {

    @POST
    @Path("/register")
    @Transactional
    public Response register(@Valid AuthRequest req) {
        if (User.findByUsername(req.username) != null)
            return Response.status(Response.Status.CONFLICT).build();

        User.add(req.username, req.password);
        return Response.status(Response.Status.CREATED).build();
    }

    @POST
    @Path("/login")
    @Transactional
    public Response login(@Valid AuthRequest req) {
        User u = User.findByUsername(req.username);
        if (u == null || !BCrypt.checkpw(req.password, u.password))
            return Response.status(Response.Status.UNAUTHORIZED).build();

        String token = Jwt.issuer("https://example.com/issuer")
                .upn(u.username)
                .claim(Claims.email.name(), u.username + "@example.com")
                .claim("user_id", u.id.toString())
                .expiresIn(Duration.ofHours(1))
                .sign();
        return Response.ok(token).build();
    }
}

Permission service

The PermissionService is the single authority that answers the question, “May this user perform this action on this document?” It collapses all business rules—ownership implies full access, explicit rights grant limited access, only owners or users with SHARE may delegate or revoke, into one place, so controllers stay slim and security logic remains testable and cacheable.

PermissionService.java

package com.example.service;

import com.example.entity.Document;
import com.example.entity.DocumentRight;
import com.example.entity.User;
import com.example.entity.UserDocumentRight;

import jakarta.enterprise.context.ApplicationScoped;
import jakarta.transaction.Transactional;

@ApplicationScoped
public class PermissionService {

    public boolean hasPermission(Long userId, Long docId, DocumentRight right) {
        if (userId == null || docId == null)
            return false;

        Document doc = Document.findById(docId);
        if (doc == null)
            return false;

        if (doc.owner.id.equals(userId))
            return true; // owner = all rights
        return UserDocumentRight.hasRight(userId, docId, right);
    }

    @Transactional
    public void grantPermission(User target, Document doc,
            DocumentRight right, User granter) {

        if (!hasPermission(granter.id, doc.id, DocumentRight.SHARE))
            throw new SecurityException("Missing SHARE on document " + doc.id);

        if (UserDocumentRight.hasRight(target.id, doc.id, right))
            return;

        UserDocumentRight r = new UserDocumentRight();
        r.user = target;
        r.document = doc;
        r.right = right;
        r.persist();
    }

    @Transactional
    public long revokePermission(User target, Document doc,
            DocumentRight right, User revoker) {

        if (!hasPermission(revoker.id, doc.id, DocumentRight.SHARE))
            throw new SecurityException("Missing SHARE on document " + doc.id);

        if (doc.owner.id.equals(target.id))
            throw new IllegalArgumentException("Cannot revoke owner rights");

        return UserDocumentRight.delete("user=?1 and document=?2 and right=?3",
                target, doc, right);
    }
}

Quarkus permission checker

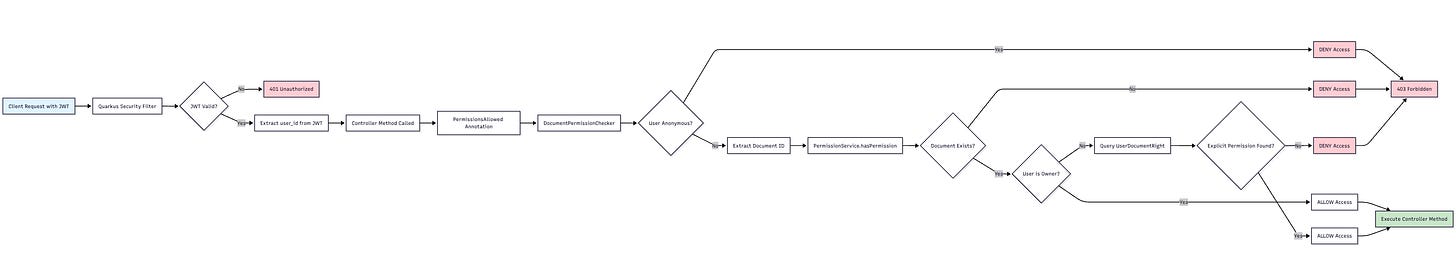

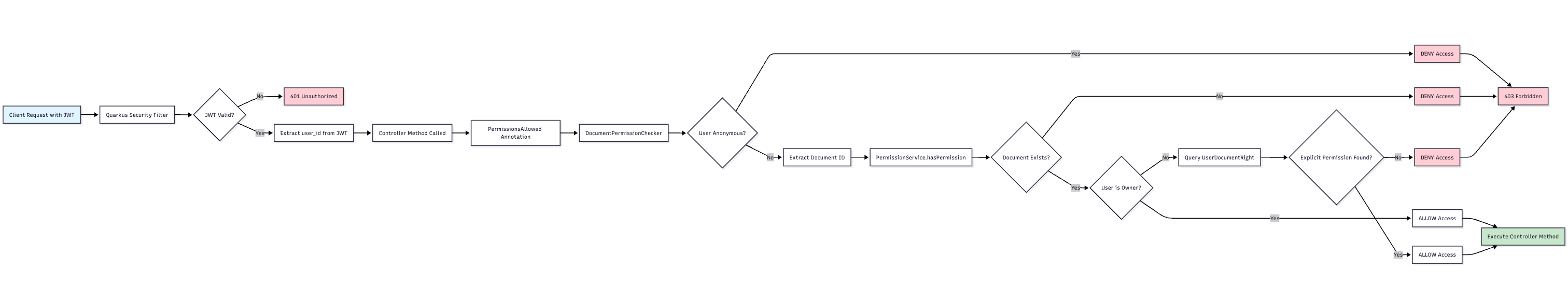

The permission checker is the glue between your declarative @PermissionsAllowed annotations and the imperative logic in PermissionService. At build time Quarkus maps each permission string to the corresponding @PermissionChecker method, injects the current SecurityIdentity, resolves any path parameters, and calls that method before the target endpoint is executed. This keeps authorization decisions type safe, centralised, and free from runtime reflection overhead.

DocumentPermissionChecker.java

package com.example.security;

import org.eclipse.microprofile.jwt.JsonWebToken;

import com.example.entity.DocumentRight;
import com.example.service.PermissionService;

import io.quarkus.security.PermissionChecker;
import io.quarkus.security.identity.SecurityIdentity;
import jakarta.enterprise.context.ApplicationScoped;
import jakarta.inject.Inject;

@ApplicationScoped
public class DocumentPermissionChecker {

    @Inject
    PermissionService perms;

    @PermissionChecker("document-read")
    public boolean canRead(SecurityIdentity identity, Long id) {
        return check(identity, id, DocumentRight.READ);
    }

    @PermissionChecker("document-write")
    public boolean canWrite(SecurityIdentity identity, Long id) {
        return check(identity, id, DocumentRight.WRITE);
    }

    @PermissionChecker("document-delete")
    public boolean canDelete(SecurityIdentity identity, Long id) {
        return check(identity, id, DocumentRight.DELETE);
    }

    @PermissionChecker("document-share")
    public boolean canShare(SecurityIdentity identity, Long id) {
        return check(identity, id, DocumentRight.SHARE);
    }

    private boolean check(SecurityIdentity identity, Long id, DocumentRight r) {
        if (identity.isAnonymous())
            return false;
        JsonWebToken jwt = (JsonWebToken) identity.getPrincipal();
        String uid = jwt.getClaim("user_id");
        return uid != null && perms.hasPermission(Long.parseLong(uid), id, r);
    }
}

Document resource

DocumentResource presents the REST facade that consumers interact with: CRUD endpoints for documents plus ACL management endpoints for granting and revoking rights. Each method stays thin because it delegates authorization to @PermissionsAllowed and business logic to PermissionService, leaving just request mapping, DTO conversion, and transaction boundaries.

DTOs

package com.example.dto;

import java.time.LocalDateTime;

public class DocumentDto {
    public Long id;
    public String title;
    public String content;
    public String ownerUsername;
    public LocalDateTime createdAt;
    public LocalDateTime updatedAt;
}

package com.example.dto;

import com.example.entity.DocumentRight;

public class PermissionDto {
    public String targetUsername;
    public DocumentRight right;
}

DocumentResource.java

package com.example.controller;

import org.eclipse.microprofile.jwt.JsonWebToken;

import com.example.dto.DocumentDto;
import com.example.dto.PermissionDto;
import com.example.entity.Document;
import com.example.entity.User;
import com.example.service.PermissionService;

import io.quarkus.security.Authenticated;
import io.quarkus.security.PermissionsAllowed;
import io.quarkus.security.identity.SecurityIdentity;
import jakarta.inject.Inject;
import jakarta.transaction.Transactional;
import jakarta.ws.rs.Consumes;
import jakarta.ws.rs.DELETE;
import jakarta.ws.rs.GET;
import jakarta.ws.rs.NotFoundException;
import jakarta.ws.rs.POST;
import jakarta.ws.rs.PUT;
import jakarta.ws.rs.Path;
import jakarta.ws.rs.PathParam;
import jakarta.ws.rs.Produces;
import jakarta.ws.rs.core.MediaType;
import jakarta.ws.rs.core.Response;

@Path("/documents")
@Authenticated
@Consumes(MediaType.APPLICATION_JSON)
@Produces(MediaType.APPLICATION_JSON)
public class DocumentResource {

    @Inject
    SecurityIdentity identity;
    @Inject
    PermissionService perms;

    private User currentUser() {
        JsonWebToken jwt = (JsonWebToken) identity.getPrincipal();
        String userId = jwt.getClaim("user_id");
        Long id = Long.parseLong(userId);
        return User.findById(id);
    }

    @POST
    @Transactional
    public Response create(DocumentDto in) {
        User me = currentUser();
        Document d = new Document();
        d.title = in.title;
        d.content = in.content;
        d.owner = me;
        d.persistAndFlush();
        return Response.status(Response.Status.CREATED).entity(toDto(d)).build();
    }

    @GET
    @Path("/{id}")
    @PermissionsAllowed("document-read")
    public DocumentDto get(@PathParam("id") Long id) {
        Document d = Document.findById(id);
        if (d == null)
            throw new NotFoundException();
        return toDto(d);
    }

    @PUT
    @Path("/{id}")
    @PermissionsAllowed("document-write")
    @Transactional
    public DocumentDto update(@PathParam("id") Long id, DocumentDto in) {
        Document d = Document.findById(id);
        if (d == null)
            throw new NotFoundException();
        d.title = in.title;
        d.content = in.content;
        return toDto(d);
    }

    @DELETE
    @Path("/{id}")
    @PermissionsAllowed("document-delete")
    @Transactional
    public Response delete(@PathParam("id") Long id) {
        if (!Document.deleteById(id))
            throw new NotFoundException();
        return Response.noContent().build();
    }

    // --- ACL endpoints ----------------------------------------------------

    @POST
    @Path("/{id}/permissions")
    @PermissionsAllowed("document-share")
    @Transactional
    public Response grant(@PathParam("id") Long id, PermissionDto dto) {

        User me = currentUser();
        Document doc = Document.findById(id);
        if (doc == null)
            throw new NotFoundException();

        User target = User.findByUsername(dto.targetUsername);
        if (target == null)
            throw new NotFoundException("User not found");

        perms.grantPermission(target, doc, dto.right, me);
        return Response.ok("granted").build();
    }

    @DELETE
    @Path("/{id}/permissions")
    @PermissionsAllowed("document-share")
    @Transactional
    public Response revoke(@PathParam("id") Long id, PermissionDto dto) {

        User me = currentUser();
        Document doc = Document.findById(id);
        if (doc == null)
            throw new NotFoundException();

        User target = User.findByUsername(dto.targetUsername);
        if (target == null)
            throw new NotFoundException("User not found");

        perms.revokePermission(target, doc, dto.right, me);
        return Response.ok("revoked").build();
    }

    private static DocumentDto toDto(Document d) {
        DocumentDto out = new DocumentDto();
        out.id = d.id;
        out.title = d.title;
        out.content = d.content;
        out.ownerUsername = d.owner.username;
        out.createdAt = d.createdAt;
        out.updatedAt = d.updatedAt;
        return out;
    }
}

Run and exercise the API

Start Quarkus in dev mode. Dev Services launches PostgreSQL automatically if Docker is available.

./mvnw quarkus:dev

1. Register users

curl -X POST localhost:8080/auth/register -H 'Content-Type: application/json' \
  -d '{"username":"alice","password":"pw"}'
curl -X POST localhost:8080/auth/register -H 'Content-Type: application/json' \
  -d '{"username":"bob","password":"pw"}'

2. Login

ALICE=$(curl -sX POST localhost:8080/auth/login -H 'Content-Type: application/json' \
  -d '{"username":"alice","password":"pw"}')
BOB=$(curl  -sX POST localhost:8080/auth/login -H 'Content-Type: application/json' \
  -d '{"username":"bob","password":"pw"}')

3. Create, share, enforce

# alice creates a document
curl -X POST localhost:8080/documents -H "Authorization: Bearer $ALICE" \
     -H 'Content-Type: application/json' \
     -d '{"title":"Phoenix","content":"top secret"}'

# bob cannot read it yet
curl -i localhost:8080/documents/1 -H "Authorization: Bearer $BOB"
# 403

# alice grants READ
curl -X POST localhost:8080/documents/1/permissions -H "Authorization: Bearer $ALICE" \
     -H 'Content-Type: application/json' \
     -d '{"targetUsername":"bob","right":"READ"}'

# bob succeeds
curl -i localhost:8080/documents/1 -H "Authorization: Bearer $BOB"
# 200

High-Level Permission Checking System

This is a granular Role-Based Access Control (RBAC) system for document management with the following key concepts:

Core Components:

JWT Authentication: Users authenticate and receive JWT tokens containing their user_id

Document Ownership: Each document has an owner who automatically has all permissions

Granular Permissions: Four specific rights can be granted to users:

• READ - View document content

• WRITE - Modify document content

• DELETE - Remove the document

• SHARE - Grant/revoke permissions to other users

Permission Storage: Explicit permissions are stored in UserDocumentRight entities

Permission Checking Flow:

Request arrives with JWT token containing user_id

Quarkus Security validates JWT and extracts user identity

Permission Checker intercepts method calls annotated with @PermissionsAllowed

Permission Service evaluates access:

• If user is document owner → ALLOW (all rights)

• Otherwise, check explicit permissions in database

Decision is made to allow or deny the request

Here's the mermaid diagram showing the complete flow:

What next?

Cache hot paths. Annotate PermissionService.hasPermission with @CacheResult once Quarkus-cache is on the classpath.

Index for scale. Add a composite index on (user_id, document_id, right_type) in the user_document_rights table if your workload exceeds hundreds of thousands of rows.

Model inheritance. Introduce a Team entity and resolve permissions by membership to reflect organisational structure.

Audit everything. Wrap grantPermission and revokePermission with an @TransactionalEventObserver that emits immutable audit records.

Small modules, explicit business rules, one authority point. That is sustainable enterprise security.
