Your Quarkus Architecture Is Drifting. JQAssistant Can Prove It.

Using graph-based analysis to detect and prevent architectural decay in Java applications

I ran into JQAssistant the first time on a large Java system where the architecture looked clean on slides but not in the code.
Layers existed in theory. In practice, everything depended on everything.

Code reviews did not catch it. Static analyzers did not care.
The system worked. Until it didn’t.

This is exactly the gap JQAssistant fills.

JQAssistant does not lint your code.
It models your codebase as a graph and lets you ask architectural questions using Cypher.

In this tutorial, we wire JQAssistant into a Quarkus application and use it to:

• Enforce a layered architecture

• Validate CDI usage

• Detect structural code smells

• Fail the build when architecture rules are violated

This is not about academic architecture diagrams.
This is about keeping real systems honest over time.

What You Will Build

We will create a small but realistic Quarkus application:

• Domain, repository, service, and REST layers

• CDI-based wiring

• In-memory persistence for simplicity

Then we will:

• Scan the code with JQAssistant

• Define architectural rules in AsciiDoc

• Run Cypher-based constraints

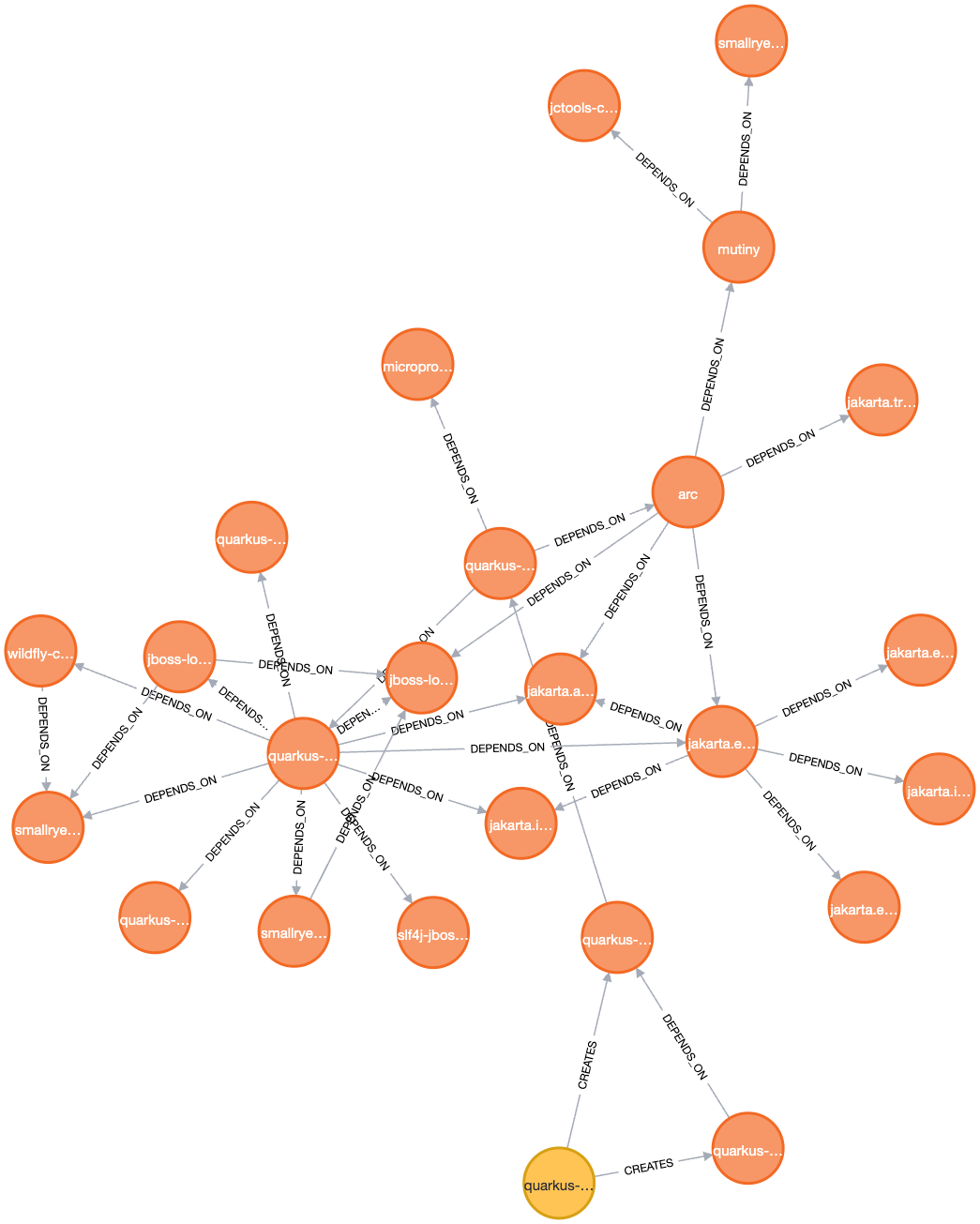

• Inspect violations in reports and Neo4j

• Integrate everything into the Maven build

No mock examples. No pseudocode.

Prerequisites

Before starting, make sure you have:

• JDK 17 or later

• Maven 3.8+

• Basic Quarkus knowledge

• Any Java IDE

You do not need Neo4j installed. JQAssistant ships with an embedded server.

Project Setup

Create a New Quarkus Project

We start with a standard Quarkus REST application. Either follow along or grab the code from my repository.

mvn io.quarkus:quarkus-maven-plugin:create \
    -DprojectGroupId=com.example \
    -DprojectArtifactId=quarkus-jqassistant-demo \
    -DclassName="com.example.GreetingResource" \
    -Dpath="/hello"
    -Dextensions="rest-jackson"
cd quarkus-jqassistant-demo

This gives us a working Quarkus application we can extend.

Before touching JQAssistant, verify the app builds:

mvn clean test

A green build here avoids confusion later.

Add JQAssistant to the Build

JQAssistant integrates via a Maven plugin.
It scans bytecode and sources after compilation.

Open pom.xml and add the plugin inside <build>:

<build>
    <plugins>
        <plugin>
            <groupId>com.buschmais.jqassistant</groupId>
            <artifactId>jqassistant-maven-plugin</artifactId>
            <version>2.8.0</version>
            <executions>
                <execution>
                    <goals>
                        <goal>scan</goal>
                        <goal>analyze</goal>
                    </goals>
                </execution>
            </executions>
            <configuration>
                <failOnSeverity>MAJOR</failOnSeverity>
                <warnOnSeverity>MINOR</warnOnSeverity>
            </configuration>
        </plugin>
    </plugins>
</build>

This configuration tells Maven:

• Scan the project

• Apply rules

• Fail the build on MAJOR violations

Nothing breaks yet. We have no rules.

Building a Sample Application

Before enforcing architecture, we need something to enforce.

Domain Model

Create src/main/java/com/example/domain/Customer.java:

package com.example.domain;

public class Customer {

    private Long id;
    private String name;
    private String email;

    public Customer() {
    }

    public Customer(Long id, String name, String email) {
        this.id = id;
        this.name = name;
        this.email = email;
    }

    public Long getId() {
        return id;
    }

    public void setId(Long id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getEmail() {
        return email;
    }

    public void setEmail(String email) {
        this.email = email;
    }
}

This is a simple POJO.
No annotations. No framework coupling.

That is intentional.

Repository Layer

Create src/main/java/com/example/repository/CustomerRepository.java:

package com.example.repository;

import java.util.ArrayList;
import java.util.List;
import java.util.Optional;
import java.util.concurrent.ConcurrentHashMap;
import java.util.concurrent.atomic.AtomicLong;

import com.example.domain.Customer;

import jakarta.enterprise.context.ApplicationScoped;

@ApplicationScoped
public class CustomerRepository {

    private final ConcurrentHashMap<Long, Customer> store = new ConcurrentHashMap<>();
    private final AtomicLong idGenerator = new AtomicLong(1);

    public Customer save(Customer customer) {
        if (customer.getId() == null) {
            customer.setId(idGenerator.getAndIncrement());
        }
        store.put(customer.getId(), customer);
        return customer;
    }

    public Optional<Customer> findById(Long id) {
        return Optional.ofNullable(store.get(id));
    }

    public List<Customer> findAll() {
        return new ArrayList<>(store.values());
    }

    public void deleteById(Long id) {
        store.remove(id);
    }
}

This repository:

• Is CDI-managed

• Has no Quarkus-specific APIs

• Keeps dependencies clean

This will matter later.

Service Layer

Create src/main/java/com/example/service/CustomerService.java:

package com.example.service;

import java.util.List;
import java.util.Optional;

import com.example.domain.Customer;
import com.example.repository.CustomerRepository;

import jakarta.enterprise.context.ApplicationScoped;
import jakarta.inject.Inject;

@ApplicationScoped
public class CustomerService {

    @Inject
    CustomerRepository repository;

    public Customer createCustomer(Customer customer) {
        validate(customer);
        return repository.save(customer);
    }

    public Optional<Customer> getCustomer(Long id) {
        return repository.findById(id);
    }

    public List<Customer> getAllCustomers() {
        return repository.findAll();
    }

    public void deleteCustomer(Long id) {
        repository.deleteById(id);
    }

    private void validate(Customer customer) {
        if (customer.getName() == null || customer.getName().isBlank()) {
            throw new IllegalArgumentException(”Customer name is required”);
        }
        if (customer.getEmail() == null || !customer.getEmail().contains(”@”)) {
            throw new IllegalArgumentException(”Valid email is required”);
        }
    }
}

This service:

• Depends only on repository and domain

• Is correctly scoped

• Contains business logic

Exactly the pattern we want to enforce.

REST Resource

Move and rename the scaffolded GreetingResource to src/main/java/com/example/resource/CustomerResource.java and replace the content:

package com.example.resource;

import java.util.List;

import com.example.domain.Customer;
import com.example.service.CustomerService;

import jakarta.inject.Inject;
import jakarta.ws.rs.Consumes;
import jakarta.ws.rs.DELETE;
import jakarta.ws.rs.GET;
import jakarta.ws.rs.POST;
import jakarta.ws.rs.Path;
import jakarta.ws.rs.PathParam;
import jakarta.ws.rs.Produces;
import jakarta.ws.rs.core.MediaType;
import jakarta.ws.rs.core.Response;

@Path(”/customers”)
@Produces(MediaType.APPLICATION_JSON)
@Consumes(MediaType.APPLICATION_JSON)
public class CustomerResource {

    @Inject
    CustomerService customerService;

    @GET
    public List<Customer> getAllCustomers() {
        return customerService.getAllCustomers();
    }

    @GET
    @Path(”/{id}”)
    public Response getCustomer(@PathParam(”id”) Long id) {
        return customerService.getCustomer(id)
                .map(c -> Response.ok(c).build())
                .orElse(Response.status(Response.Status.NOT_FOUND).build());
    }

    @POST
    public Response createCustomer(Customer customer) {
        try {
            Customer created = customerService.createCustomer(customer);
            return Response.status(Response.Status.CREATED).entity(created).build();
        } catch (IllegalArgumentException e) {
            return Response.status(Response.Status.BAD_REQUEST).entity(e.getMessage()).build();
        }
    }

    @DELETE
    @Path(”/{id}”)
    public Response deleteCustomer(@PathParam(”id”) Long id) {
        customerService.deleteCustomer(id);
        return Response.noContent().build();
    }
}

At this point, the application is complete.

Run it once:

mvn quarkus:dev

Confirm /customers works.

curl -X POST http://localhost:8080/customers \
  -H "Content-Type: application/json" \
  -d '{
    "name": "John Doe",
    "email": "john.doe@example.com"
  }'

Expected output:

{
  “id”: 1,
  “name”: “John Doe”,
  “email”: “john.doe@example.com”
}

Then stop the server.

Defining Architecture Rules

Now we get to the reason we are here.

Create JQAssistant Directory

JQAssistant looks for rules in a top-level jqassistant directory.

mkdir jqassistant

This directory is versioned.
Your architecture becomes part of your source control.

Architecture Rules

Create jqassistant/architecture-rules.xml.

This file defines constraints.
Constraints can fail the build.

The rules below enforce:

• Layered dependencies

• Naming conventions

• CDI scope usage

• Basic code quality signals

A group is a set of rules (i.e. concepts, constraints or other groups) that shall be executed together by including them with the option to overwrite their default severity.

  <group id=”default”>
    <includeConcept refId=”layer-*”/>
    <includeConstraint refId=”*”/>
  </group>

Architectural Constraints

<!-- ========================================================= -->
  <!-- Architecture Constraints                                  -->
  <!-- ========================================================= -->

  <constraint id=”resource-depends-on-service”
    severity=”major”>
    <requiresConcept refId=”layer-resource”/>
    <requiresConcept refId=”layer-service”/>
    <requiresConcept refId=”layer-domain”/>
    <description>
            REST resources must only depend on services or domain classes
        </description>
    <cypher><![CDATA[
            MATCH (r:Resource)-[:DEPENDS_ON]->(d:Type)
            WHERE NOT d:Service
              AND NOT d:Domain
              AND NOT d.fqn STARTS WITH ‘java.’
              AND NOT d.fqn STARTS WITH ‘jakarta.’
            RETURN r.fqn AS Resource, d.fqn AS IllegalDependency
        ]]></cypher>
  </constraint>

  <constraint id=”service-depends-on-repository-or-domain”
    severity=”major”>
    <requiresConcept refId=”layer-service”/>
    <requiresConcept refId=”layer-repository”/>
    <requiresConcept refId=”layer-domain”/>
    <description>
            Services must only depend on repositories or domain classes
        </description>
    <cypher><![CDATA[
            MATCH (s:Service)-[:DEPENDS_ON]->(d:Type)
            WHERE NOT d:Repository
              AND NOT d:Domain
              AND NOT d.fqn STARTS WITH ‘java.’
              AND NOT d.fqn STARTS WITH ‘jakarta.’
            RETURN s.fqn AS Service, d.fqn AS IllegalDependency
        ]]></cypher>
  </constraint>

If a REST resource talks directly to a repository, the build fails.

No discussion. No review comment. Just failure.

Naming and CDI Rules

<!-- ========================================================= -->
  <!-- Naming Conventions                                        -->
  <!-- ========================================================= -->

  <constraint id=”repository-naming”
    severity=”minor”>
    <requiresConcept refId=”layer-repository”/>
    <description>
            Repository classes must end with ‘Repository’
        </description>
    <cypher><![CDATA[
            MATCH (r:Repository)
            WHERE NOT r.name ENDS WITH ‘Repository’
            RETURN r.fqn
        ]]></cypher>
  </constraint>

  <constraint id=”service-naming”
    severity=”minor”>
    <requiresConcept refId=”layer-service”/>
    <description>
            Service classes must end with ‘Service’
        </description>
    <cypher><![CDATA[
            MATCH (s:Service)
            WHERE NOT s.name ENDS WITH ‘Service’
            RETURN s.fqn
        ]]></cypher>
  </constraint>

  <!-- ========================================================= -->
  <!-- CDI Rules                                                 -->
  <!-- ========================================================= -->

  <constraint id=”service-must-be-applicationscoped”
    severity=”major”>
    <requiresConcept refId=”layer-service”/>
    <description>
            Services must be annotated with @ApplicationScoped
        </description>
    <cypher><![CDATA[
            MATCH (s:Service)
            WHERE NOT EXISTS {
                MATCH (s)-[:ANNOTATED_BY]->(ann:Type)
                WHERE ann.fqn = ‘jakarta.enterprise.context.ApplicationScoped’
            }
            RETURN s.fqn
        ]]></cypher>
  </constraint>

This catches forgotten scopes early.
Before load tests or production.

Code Quality Signals

These are not absolute truths.
They are early warnings.

<!-- ========================================================= -->
  <!-- Code Quality Rules                                        -->
  <!-- ========================================================= -->

  <constraint id=”unused-private-methods”
    severity=”minor”>
    <description>
            Private methods should be invoked at least once
        </description>
    <cypher><![CDATA[
            MATCH (t:Type)-[:DECLARES]->(m:Method)
            WHERE m.visibility = ‘private’
              AND NOT EXISTS {
                MATCH (m)<-[:INVOKES]-()
              }
            RETURN t.fqn AS Type, m.name AS Method
        ]]></cypher>
  </constraint>

  <constraint id=”long-methods”
    severity=”minor”>
    <description>
            Methods should not exceed 50 effective lines
        </description>
    <cypher><![CDATA[
            MATCH (t:Type)-[:DECLARES]->(m:Method)
            WHERE m.effectiveLineCount > 50
            RETURN t.fqn AS Type, m.name AS Method, m.effectiveLineCount AS Lines
        ]]></cypher>
  </constraint>

You can tune or remove these later.

Concepts

The information created by the scanner represents the structure of a software project on a raw level. Concept rules allow enriching the database with higher level information to ease the process of writing queries that check for violations (i.e. constraints) . This typically means adding labels, properties or relations.

Define Concepts

<!-- ========================================================= -->
  <!-- Concepts                                                  -->
  <!-- ========================================================= -->

  <concept id=”layer-resource”>
    <description>Marks REST resource classes</description>
    <cypher><![CDATA[
            MATCH (t:Type)
            WHERE t.fqn =~ ‘.*\\.resource\\..*’
            SET t:Resource
            RETURN t.fqn
        ]]></cypher>
  </concept>

  <concept id=”layer-service”>
    <description>Marks service classes</description>
    <cypher><![CDATA[
            MATCH (t:Type)
            WHERE t.fqn =~ ‘.*\\.service\\..*’
            SET t:Service
            RETURN t.fqn
        ]]></cypher>
  </concept>

  <concept id=”layer-repository”>
    <description>Marks repository classes</description>
    <cypher><![CDATA[
            MATCH (t:Type)
            WHERE t.fqn =~ ‘.*\\.repository\\..*’
            SET t:Repository
            RETURN t.fqn
        ]]></cypher>
  </concept>

  <concept id=”layer-domain”>
    <description>Marks domain classes</description>
    <cypher><![CDATA[
            MATCH (t:Type)
            WHERE t.fqn =~ ‘.*\\.domain\\..*’
            SET t:Domain
            RETURN t.fqn
        ]]></cypher>
  </concept>

Now your architecture is explicit and queryable.

Running JQAssistant

Step 10: Scan the Codebase

mvn clean compile jqassistant:scan

This populates the Neo4j graph.

Then run analysis:

mvn jqassistant:analyze

If rules are violated, the build fails here.

Start the Neo4j Server

mvn jqassistant:server

Open http://localhost:7474/?dbms=bolt://localhost:7687&preselectAuthMethod=NO_AUTH

Now you can explore your code as a graph. Here for example the maven dependencies:

You learned how to:

• Model a Quarkus application as a graph

• Define architecture as executable rules

• Enforce layering and CDI usage

• Detect structural issues early

• Integrate architecture checks into CI

JQAssistant does not replace reviews.
It removes arguments about facts.

Architecture stops being a guideline and becomes code.

That is the point.
