Building a Real-Time Collaborative AI Editor with Quarkus, CRDTs, and Local LLMs

Learn how to combine CRDTs, WebSockets, and a local LLM to build a fast, conflict-free collaborative text editor with AI suggestions—entirely in Java.

The modern developer doesn’t just write code anymore, they shape collaborative, intelligent systems. In this tutorial, you'll build one such system: a real-time collaborative text editor with AI-powered writing suggestions. It's a full-stack Java application using Quarkus, LangChain4j, WebSockets, and a simplified CRDT model to keep concurrent edits conflict-free.

This isn't just another CRUD app. You're going to explore WebSockets for real-time collaboration, CRDTs for distributed consistency, and local large language models (LLMs) for AI-powered suggestions, all in a single Java-based project.

What You’ll Build

This project combines classic backend skills with modern AI tools:

• A Quarkus backend using WebSockets for real-time collaboration

• A conflict-free editing model using a sequence-based CRDT

• A simple but powerful AI assistant built with LangChain4j

• A local language model served automatically using Ollama via Dev Services

• A lightweight HTML and JavaScript frontend that ties everything together

Prerequisites

Make sure you have the following installed before you continue:

• JDK 17 or newer

• Apache Maven 3.8+

• Podman (or even Docker) Running and accessible. Quarkus Dev Services will spin up a local Ollama container automatically.

Project Setup: Generate Your Quarkus App

If you don’t want to follow along you are more than welcome to grab the source from my Github repository. When you do that, please also leave a star there :)

First, generate a new Quarkus project with the necessary extensions:

mvn io.quarkus.platform:quarkus-maven-plugin:create \
  -DprojectGroupId="org.crdt.ai" \
  -DprojectArtifactId="collaborative-editor" \
  -Dextensions="websockets-next, langchain4j-ollama, rest-jackson"
cd collaborative-editor

Here's what each extension gives you:

• websockets-next: Modern WebSocket support with lifecycle annotations

• langchain4j-ollama: AI integration powered by local models using Ollama

• rest-jackson: JSON handling over WebSocket messages

Backend Foundation: Sequence CRDT and AI Suggestions

Let’s start building the server-side logic.

Modeling Characters with CRDTs

Instead of managing the entire document as a string, we’ll model it as a list of characters, each with a unique ID. This ensures that concurrent insertions and deletions are unambiguous and conflict-free.

Create: src/main/java/org/crdt/ai/CrdtCharacter.java

package org.crdt.ai;

import java.util.UUID;

public record CrdtCharacter(char value, UUID id) {}

Next, create a singleton to manage shared state across WebSocket sessions:

src/main/java/org/crdt/ai/DocumentState.java

package org.crdt.ai;

import java.util.List;
import java.util.UUID;
import java.util.concurrent.CopyOnWriteArrayList;
import java.util.stream.Collectors;

import jakarta.enterprise.context.ApplicationScoped;

@ApplicationScoped
public class DocumentState {

    private final List<CrdtCharacter> document = new CopyOnWriteArrayList<>();

    public void insert(int index, CrdtCharacter character) {
        if (index >= 0 && index <= document.size()) {
            document.add(index, character);
        }
    }

    public void delete(UUID characterId) {
        document.removeIf(c -> c.id().equals(characterId));
    }

    public String getTextContent() {
        return document.stream()
                .map(c -> String.valueOf(c.value()))
                .collect(Collectors.joining());
    }

    public List<CrdtCharacter> getFullDocument() {
        return List.copyOf(document);
    }
}

Structuring WebSocket Messages

To keep message handling clean, define a wrapper for all WebSocket messages.

Create: src/main/java/org/crdt/ai/websocket/WsMessage.java

package org.crdt.ai.websocket;

import com.fasterxml.jackson.databind.JsonNode;

public record WsMessage(String type, JsonNode payload) {}

Creating the AI Assistant

Now let’s add our AI capability. LangChain4j makes this simple. Define an interface annotated with @RegisterAiService and provide a system prompt. Create: src/main/java/org/crdt/ai/AiAssistant.java

package org.crdt.ai;

import dev.langchain4j.service.SystemMessage;
import io.quarkiverse.langchain4j.RegisterAiService;

@RegisterAiService
public interface AiAssistant {

    @SystemMessage("""
                You are a helpful and creative writing assistant.
                The user will provide you with a piece of text from their document.
                Your task is to continue the text with one or two concise and creative sentences.
                DO NOT repeat the user's text in your response. Just provide the new sentences.
                Your response must be plain text, without any formatting.
            """)
    String suggest(String text);
}

Handling WebSocket Events

Now let’s wire everything together. This class will manage all WebSocket connections, message routing, document updates, and AI responses.

src/main/java/org/crdt/ai/websocket/DocumentSocket.java

package org.crdt.ai.websocket;

import java.util.UUID;

import org.crdt.ai.AiAssistant;
import org.crdt.ai.CrdtCharacter;
import org.crdt.ai.DocumentState;

import com.fasterxml.jackson.core.JsonProcessingException;
import com.fasterxml.jackson.databind.JsonNode;
import com.fasterxml.jackson.databind.ObjectMapper;
import com.fasterxml.jackson.databind.node.ObjectNode;

import io.quarkus.logging.Log;
import io.quarkus.websockets.next.OnOpen;
import io.quarkus.websockets.next.OnTextMessage;
import io.quarkus.websockets.next.WebSocket;
import io.quarkus.websockets.next.WebSocketConnection;
import jakarta.enterprise.context.ApplicationScoped;
import jakarta.inject.Inject;

@WebSocket(path = "/editor")
@ApplicationScoped
public class DocumentSocket {

    @Inject
    DocumentState documentState;

    @Inject
    AiAssistant assistant;

    @Inject
    ObjectMapper objectMapper; // For JSON conversion

    @OnOpen
    public void onOpen(WebSocketConnection connection) {
        // When a new user connects, send them the current document state
        // so they are in sync.
        try {
            WsMessage syncMessage = new WsMessage("SYNC_DOCUMENT",
                    objectMapper.valueToTree(documentState.getFullDocument()));
            connection.sendText(objectMapper.writeValueAsString(syncMessage));
        } catch (JsonProcessingException e) {
            // Log error
        }
    }

    @OnTextMessage(broadcast = true) // Broadcast messages to all connected clients
    public String onMessage(WebSocketConnection connection, String message) {
        try {
            WsMessage wsMessage = objectMapper.readValue(message, WsMessage.class);
            JsonNode payload = wsMessage.payload();

            switch (wsMessage.type()) {
                case "INSERT":
                    CrdtCharacter character = objectMapper.treeToValue(payload.get("char"), CrdtCharacter.class);
                    int index = payload.get("index").asInt();
                    documentState.insert(index, character);
                    // This message will be broadcasted to all clients, including the sender
                    return message;

                case "DELETE":
                    UUID charId = UUID.fromString(payload.get("charId").asText());
                    documentState.delete(charId);
                    // Broadcast the deletion instruction
                    return message;

                case "GET_SUGGESTION":
                    // AI suggestions should not be broadcasted.
                    // We handle this separately and send it only to the requester.
                    handleSuggestionRequest(connection);
                    return null; // Returning null prevents broadcasting
            }
        } catch (JsonProcessingException e) {
            // Log error
        }
        return null; // Do not broadcast malformed messages
    }

    private void handleSuggestionRequest(WebSocketConnection connection) {
        String currentText = documentState.getTextContent();
        String suggestion;

        Log.infof("Current text: '%s' (length: %d, isBlank: %s)",
                currentText, currentText.length(), currentText.isBlank());

        if (currentText.isBlank()) {
            suggestion = "Start by typing a few words, and I'll help you continue!";
        } else {
            suggestion = assistant.suggest(currentText);
        }

        Log.infof("Sending suggestion: %s", suggestion);

        try {
            // Create a payload for the suggestion message
            ObjectNode payload = objectMapper.createObjectNode();
            payload.put("suggestion", suggestion);
            WsMessage suggestionMessage = new WsMessage("SUGGESTION", payload);

            // Send the suggestion back to only the requesting client
            String messageJson = objectMapper.writeValueAsString(suggestionMessage);
            Log.infof("Sending message: %s", messageJson);
            connection.sendText(messageJson).subscribe().asCompletionStage();
        } catch (JsonProcessingException e) {
            Log.errorf(e, "Error sending suggestion: %s", e.getMessage());
        }
    }
}

This class handles:

• Broadcasting real-time document updates (INSERT, DELETE)

• Syncing the full document state when a client connects

• Routing AI suggestions only to the requesting user

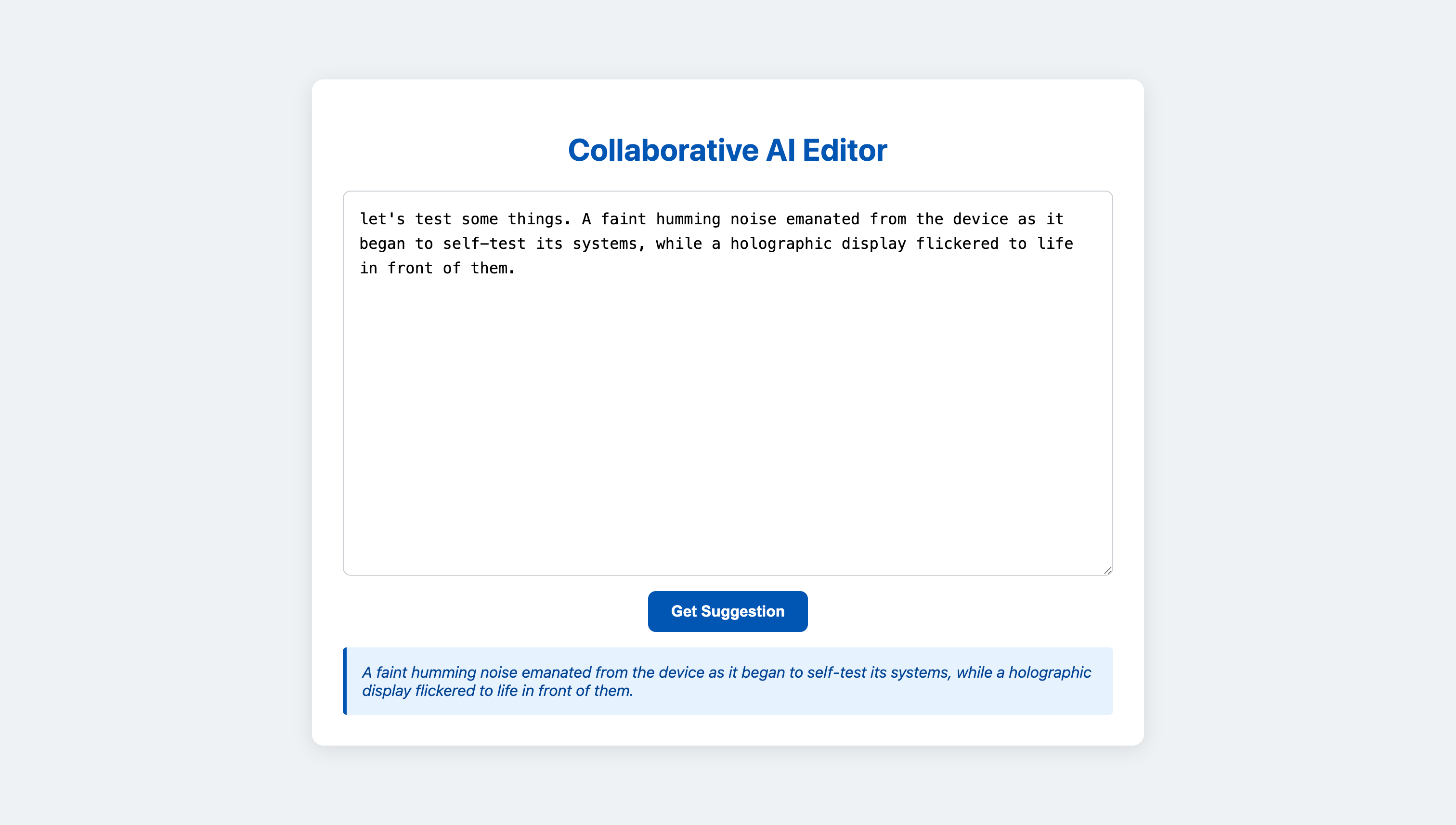

Frontend: Collaborative Editing with JavaScript

Now that the backend is functional, let’s create the user interface. This app requires no build step. Just place an HTML file in the resources/ META-INF/resources directory.

Create: src/main/resources/META-INF/resources/index.html

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Collaborative AI Editor</title>
    <style>
      <!-- omitted. Check repository -->
    </style>
</head>

<body>
    <div class="container">
        <h1>Collaborative AI Editor</h1>
        <textarea id="editor" spellcheck="false"></textarea>
        <div class="controls">
            <button id="suggestBtn">Get Suggestion</button>
        </div>
        <div id="suggestion-box"></div>
    </div>

    <script>
        const editor = document.getElementById('editor');
        const suggestBtn = document.getElementById('suggestBtn');
        const suggestionBox = document.getElementById('suggestion-box');

        // This holds the local representation of the CRDT document
        let localDocument = [];
        let isSyncing = false; // A flag to prevent sending updates while processing one
        let pendingOperations = new Set(); // Track operations we've sent but haven't received back

        const protocol = window.location.protocol === 'https:' ? 'wss:' : 'ws:';
        const ws = new WebSocket(`${protocol}//${location.host}/editor`);

        ws.onopen = () => {
            console.log('WebSocket connection established.');
            // Initialize previousText when connection opens
            previousText = editor.value;
        };
        ws.onclose = () => console.log('WebSocket connection closed.');
        ws.onerror = (error) => console.error('WebSocket error:', error);

        ws.onmessage = (event) => {
            isSyncing = true;
            try {
                const msg = JSON.parse(event.data);
                switch (msg.type) {
                    case 'SYNC_DOCUMENT':
                        localDocument = msg.payload;
                        pendingOperations.clear(); // Clear any pending operations on sync
                        updateEditorFromLocalDoc();
                        // Update previousText to match the synced document
                        previousText = editor.value;
                        break;
                    case 'INSERT':
                        const { char, index } = msg.payload;
                        // Check if this is our own operation that we already applied
                        if (pendingOperations.has(char.id)) {
                            pendingOperations.delete(char.id);
                            // Don't apply again - we already did it locally
                        } else {
                            // This is from another client - apply it
                            const currentCursor = editor.selectionStart;
                            const currentText = editor.value;

                            // Insert at the specified index, but validate it's within bounds
                            const insertIndex = Math.min(index, localDocument.length);
                            localDocument.splice(insertIndex, 0, char);

                            // Smart cursor adjustment: if insertion was before cursor, move cursor forward
                            const newCursor = insertIndex <= currentCursor ? currentCursor + 1 : currentCursor;
                            updateEditorFromLocalDoc(false); // Don't preserve cursor, we'll set it manually
                            editor.setSelectionRange(newCursor, newCursor);
                        }
                        break;
                    case 'DELETE':
                        const { charId } = msg.payload;
                        // Check if this is our own operation that we already applied
                        if (pendingOperations.has(charId)) {
                            pendingOperations.delete(charId);
                            // Don't apply again - we already did it locally
                        } else {
                            // This is from another client - apply it
                            const currentCursor = editor.selectionStart;
                            const deleteIndex = localDocument.findIndex(c => c.id === charId);
                            if (deleteIndex > -1) {
                                localDocument.splice(deleteIndex, 1);

                                // Smart cursor adjustment: if deletion was before cursor, move cursor back
                                const newCursor = deleteIndex < currentCursor ? Math.max(0, currentCursor - 1) : currentCursor;
                                updateEditorFromLocalDoc(false); // Don't preserve cursor, we'll set it manually
                                editor.setSelectionRange(newCursor, newCursor);
                            }
                        }
                        break;
                    case 'SUGGESTION':
                        const suggestion = msg.payload.suggestion;
                        suggestionBox.textContent = suggestion;

                        // If it's not the default empty message, insert the suggestion into the editor
                        if (suggestion && !suggestion.includes("Start by typing")) {
                            insertSuggestionIntoEditor(suggestion);
                        }
                        break;
                }
            } catch (e) {
                console.error("Failed to process message", e);
            } finally {
                // Use a short timeout to allow the DOM to update before re-enabling input handling
                setTimeout(() => { isSyncing = false; }, 50);
            }
        };

        function updateEditorFromLocalDoc(preserveCursor = true) {
            const text = localDocument.map(c => c.value).join('');
            const cursorPos = preserveCursor ? editor.selectionStart : 0;
            const selectionEnd = preserveCursor ? editor.selectionEnd : 0;

            // Only update if text actually changed to avoid unnecessary cursor jumps
            if (editor.value !== text) {
                editor.value = text;

                // Restore cursor position, but ensure it's within bounds
                const maxPos = text.length;
                const newCursorPos = Math.min(cursorPos, maxPos);
                const newSelectionEnd = Math.min(selectionEnd, maxPos);
                editor.setSelectionRange(newCursorPos, newSelectionEnd);
            }
        }

        let previousText = "";
        let isLocalChange = false;

        editor.addEventListener('input', (e) => {
            if (isSyncing) return;

            isLocalChange = true;
            const newText = editor.value;
            const newCursorPos = editor.selectionStart;

            // Find the differences between old and new text
            const changes = findTextDifferences(previousText, newText);

            // Process each change
            changes.forEach(change => {
                if (change.type === 'insert') {
                    // Handle character insertions
                    for (let i = 0; i < change.text.length; i++) {
                        const charValue = change.text[i];
                        const crdtChar = { value: charValue, id: crypto.randomUUID() };
                        const insertIndex = change.position + i;

                        // Apply locally AND send to server - but track this operation
                        localDocument.splice(insertIndex, 0, crdtChar);
                        pendingOperations.add(crdtChar.id);
                        sendMessage('INSERT', { char: crdtChar, index: insertIndex });
                    }
                } else if (change.type === 'delete') {
                    // Handle character deletions
                    for (let i = 0; i < change.length; i++) {
                        const deletedChar = localDocument[change.position];
                        if (deletedChar) {
                            localDocument.splice(change.position, 1);
                            pendingOperations.add(deletedChar.id);
                            sendMessage('DELETE', { charId: deletedChar.id });
                        }
                    }
                }
            });

            previousText = newText;
            isLocalChange = false;
        });

        // Better text diffing function
        function findTextDifferences(oldText, newText) {
            const changes = [];
            let oldIndex = 0;
            let newIndex = 0;

            while (oldIndex < oldText.length || newIndex < newText.length) {
                if (oldIndex < oldText.length && newIndex < newText.length &&
                    oldText[oldIndex] === newText[newIndex]) {
                    // Characters match, move forward
                    oldIndex++;
                    newIndex++;
                } else if (newIndex < newText.length &&
                          (oldIndex >= oldText.length || oldText[oldIndex] !== newText[newIndex])) {
                    // Character was inserted
                    let insertText = '';
                    const startPos = newIndex;
                    while (newIndex < newText.length &&
                           (oldIndex >= oldText.length || oldText[oldIndex] !== newText[newIndex])) {
                        insertText += newText[newIndex];
                        newIndex++;
                    }
                    changes.push({ type: 'insert', position: oldIndex, text: insertText });
                } else if (oldIndex < oldText.length) {
                    // Character was deleted
                    let deleteCount = 0;
                    while (oldIndex < oldText.length &&
                           (newIndex >= newText.length || oldText[oldIndex] !== newText[newIndex])) {
                        oldIndex++;
                        deleteCount++;
                    }
                    changes.push({ type: 'delete', position: oldIndex - deleteCount, length: deleteCount });
                }
            }

            return changes;
        }

        editor.addEventListener('focus', () => {
            // Sync previousText with current editor content to ensure accurate diffing
            previousText = editor.value;
        });


        suggestBtn.onclick = () => {
            suggestionBox.textContent = '🤖 Getting suggestion...';
            sendMessage('GET_SUGGESTION', {});
        };

        function sendMessage(type, payload) {
            if (ws.readyState === WebSocket.OPEN) {
                const msg = { type, payload };
                ws.send(JSON.stringify(msg));
            }
        }

        function insertSuggestionIntoEditor(suggestion) {
            // Get current cursor position
            const cursorPos = editor.selectionStart;

            // Insert the suggestion at cursor position
            const currentText = editor.value;
            const beforeCursor = currentText.substring(0, cursorPos);
            const afterCursor = currentText.substring(cursorPos);

            // Add a space before the suggestion if needed
            const spaceBefore = (beforeCursor.length > 0 && !beforeCursor.endsWith(' ')) ? ' ' : '';
            const textToInsert = spaceBefore + suggestion;

            // Temporarily disable syncing to prevent conflicts
            isSyncing = true;

            // Insert each character individually to maintain CRDT consistency
            for (let i = 0; i < textToInsert.length; i++) {
                const charValue = textToInsert[i];
                const crdtChar = { value: charValue, id: crypto.randomUUID() };
                const insertIndex = cursorPos + i;

                // Apply locally AND send to server - but track this operation
                localDocument.splice(insertIndex, 0, crdtChar);
                pendingOperations.add(crdtChar.id);
                sendMessage('INSERT', { char: crdtChar, index: insertIndex });
            }

            // Update the editor
            updateEditorFromLocalDoc();

            // Set cursor to end of inserted text
            const newCursorPos = cursorPos + textToInsert.length;
            editor.setSelectionRange(newCursorPos, newCursorPos);

            // Update previousText and re-enable syncing
            previousText = editor.value;
            setTimeout(() => { isSyncing = false; }, 100);
        }
    </script>
</body>

The frontend handles:

• Tracking the document state using CRDT characters

• Listening to user input and converting changes into INSERT or DELETE operations

• Displaying AI-generated suggestions

• Maintaining sync across clients via WebSocket

The code is robust, and you’ve already accounted for edge cases like cursor restoration and basic diffing. No further changes needed.

Run the Application

Now it’s time to test everything.

./mvnw quarkus:dev

On the first run, Quarkus will automatically spin up an Ollama container (or use your local Ollama installation) and pull a local model (like llama3). This might take a few seconds.

Once the server is running, open http://localhost:8080 in two browser windows. Start typing in one, and watch it instantly appear in the other.

Click “Get Suggestion” and the local AI assistant will generate a continuation based on the current document.

What You’ve Built

You now have a fully functional collaborative editor:

• Real-time updates across clients using WebSockets

• A simplified CRDT model that avoids data conflicts

• Seamless AI suggestions via a local LLM

• A frontend that interacts with the backend over a single WebSocket connection

This architecture is easily extendable. You could add user presence, document versioning, persistence with PostgreSQL, or a toolbar of AI commands.

This is more than a demo. It’s a blueprint for what modern Java-powered, AI-enhanced collaborative systems can look like.
